The AUC-MET-14 series is designed for people who need to work at a desk in front of a microscope every day. The transmitted and reflected illumination are both LED illumination, with adjustable color temperature, providing true color images at all brightness levels. The display screen is paired with an encoder type nosepiece and illuminator, making the microscope operation simple and clear to read. It meets the needs of routine microscopy requirements in areas such as metallography, earth science, forensic examination, sampling quality control and material research. It also collaborates with optional metallographic software platforms to achieve functions such as photo shooting, data analysis, and image display. With comprehensive functions and simple operation.

1.LED illumination

LED low wattage (3W) illuminator provides illumination for observation methods such as brightfield, oblique lighting, with adjustable color temperature. It can provide true color images at all brightness levels. It has long service life, so no need to frequently replace light bulbs. Low heat generation,  so no risk of overheating, creating a quiet and interference free working environment.

Built-in LED transmitted light source

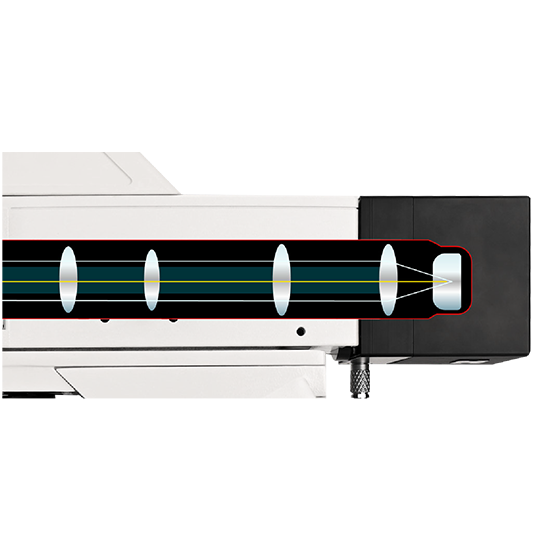

LED reflected light source

LED light source





2.Breaking through the conventional light source conversion mode

Both the transmitted light source and the reflected light source are selected with a multifunctional thumb wheel. Compared with conventional button type switching buttons, the light source turret conversion is more convenient and more suitable for beginners.



3.Microscope status display function

The LCD screen at the front of the microscope can display the usage status of the microscope, including magnification, light intensity, standby mode, etc.



4.Brightness memory function (Intelligent)

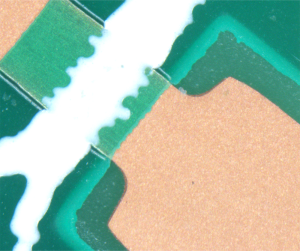

The intelligent function ensures the illumination brightness of using each objective will automatically adjust the light intensity to the corresponding brightness of each objective when different objectives are selected, reducing visual fatigue and improving work efficiency.

4X



20X



50X



100X



5. Coded Nosepiece

The display screen is paired with an encoder type nosepiece and illuminator, making microscope operation simple and clear.



6.Multiple objectives for choose from

We can offer optional objectives ranging from 2.5X-100X. Using a 2.5X overview objective can identify the macroscopic structure within the sample by increasing field of view.

7.Convenient transportation and storage

There is a dedicated handling handle on the back of the microscope body, is lightweight yet stable and structurally sturdy. The microscope backplate is designed with a hub device, which effectively stores long power cords to improve a tidier workbench.







Optional Accessories

• Digital Camera.
• Metallographic software - Can provide large image stitching, HDR, manual measurements to include distance, angle, rectangle, circle, and ellipse etc, depth of field & 3D reconstruction. Contact us for more information.
• 30° inclined, binocular head, interpupillary distance: 48-75mm.
• 100X/ NA=0.8, WD=3.5mm Plan Achromatic Metallurgical Objective.
• 2.5x Objective increases field of view observation.
• 0.5x & 1x C Mounts.



Comes with 3 years Auckland Scientific Warranty (Conditions Apply).
