CoolLED pE-300opto Optogenetics LED Illumination System

Precision Illumination for Optogenetics

The CoolLED pE-300opto combines three powerful LED channels with rapid triggering and individual irradiance control. It is designed for precise stimulation across a broad range of opsins in both ex vivo and in vivo experiments.

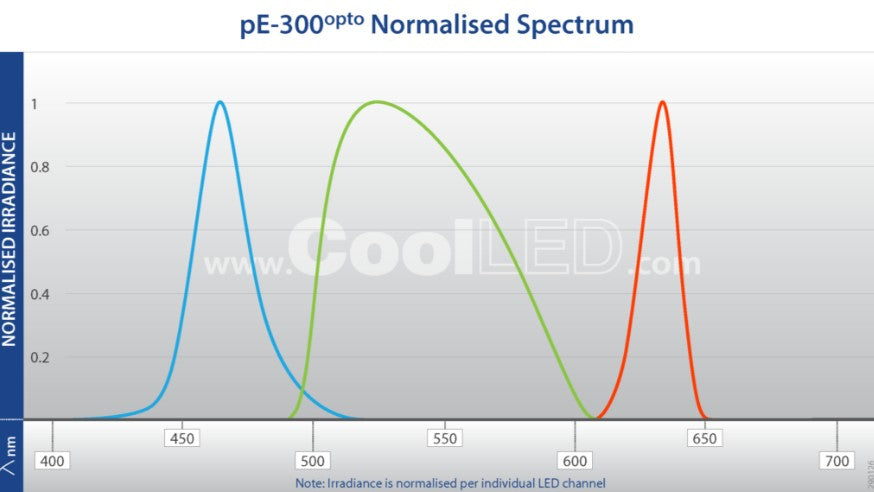

Blue 470 nm, green-yellow 550 nm and red 635 nm LED channels provide compatibility with commonly used opsins, including red-shifted options such as ChrimsonR. The system can also support fluorescence imaging with fluorophores including GFP, YFP, mCherry and Cy5.

Key Features

• Three independently controlled LED channels: 470, 550 and 635 nm
• Broad opsin compatibility from ChR2 through to ChrimsonR
• All three channels can operate simultaneously at full output
• Global and individual channel TTL triggering below 10 µs
• Individual irradiance adjustment from 0–100% in 1% steps
• Sequence Runner for automated high-speed stimulation protocols
• Three removable inline excitation-filter holders included
• USB-C connection for compatible imaging software
• Manual Control Pod for immediate operation
• Interchangeable fibre-output option for in vivo experiments
• Mercury-free and laser-free LED technology
• 36-month manufacturer’s warranty

Ex Vivo and In Vivo Applications

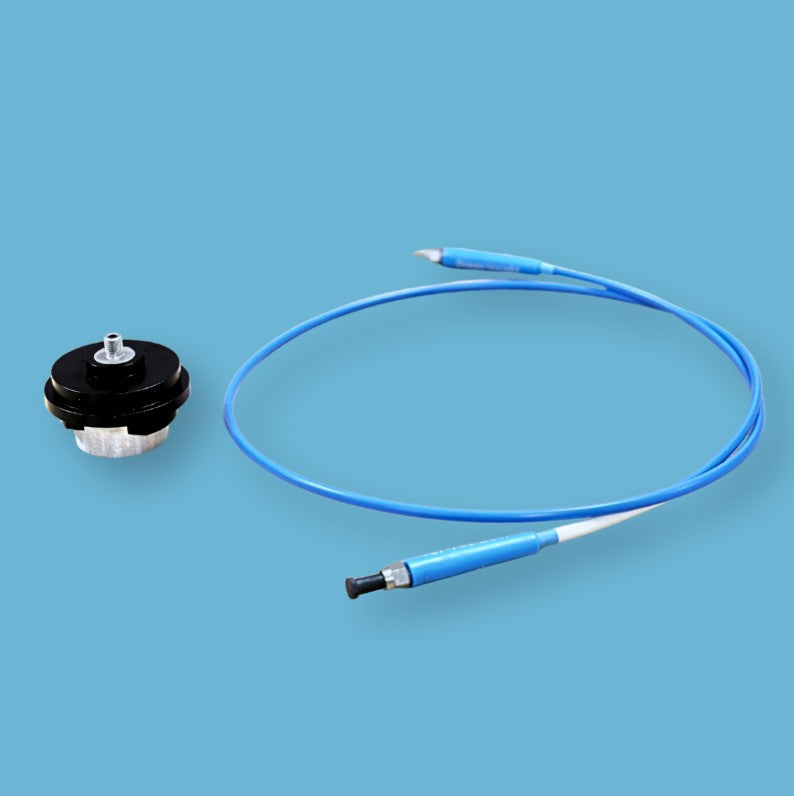

The standard liquid-light-guide output is suitable for ex vivo optogenetic stimulation under a microscope and for fluorescence imaging. An optional interchangeable fibre adaptor allows the same light source to be used for in vivo stimulation with a suitable SMA or FC fibre assembly.

Control Options

• Manual control: Instant channel selection and irradiance adjustment using the supplied Control Pod

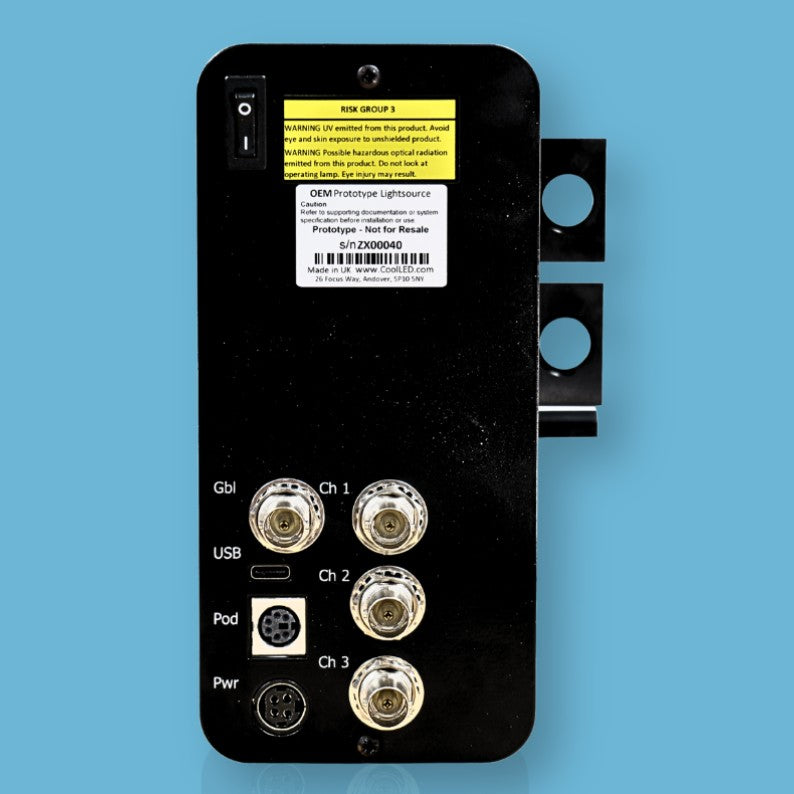

• TTL control: Global and individual channel triggering through BNC connections
• Sequence Runner: Steps through a user-defined illumination sequence from a single TTL input
• Software control: USB-C integration with compatible third-party imaging software

Standard System Includes

• pE-300opto LED Light Source
• Manual Control Pod
• Three excitation-filter holders
• Control Pod cradle
• Power supply and UK power cable

Optional Accessories

Configuration Advice

Unsure which option you need? Contact Auckland Scientific for configuration advice.

Technical Resources

Brochures, manuals and supporting documents are available from the Auckland Scientific Technical Resource Centre .

Experienced Microscopy Support

Auckland Scientific has over 21 years of microscopy sales and application experience. We can assist with opsin and wavelength selection, filter matching, microscope compatibility, system configuration, installation, training and ongoing technical support.
