CoolLED pE-4000 LED Fluorescence Illumination System
Price available on request — please contact us for a quote

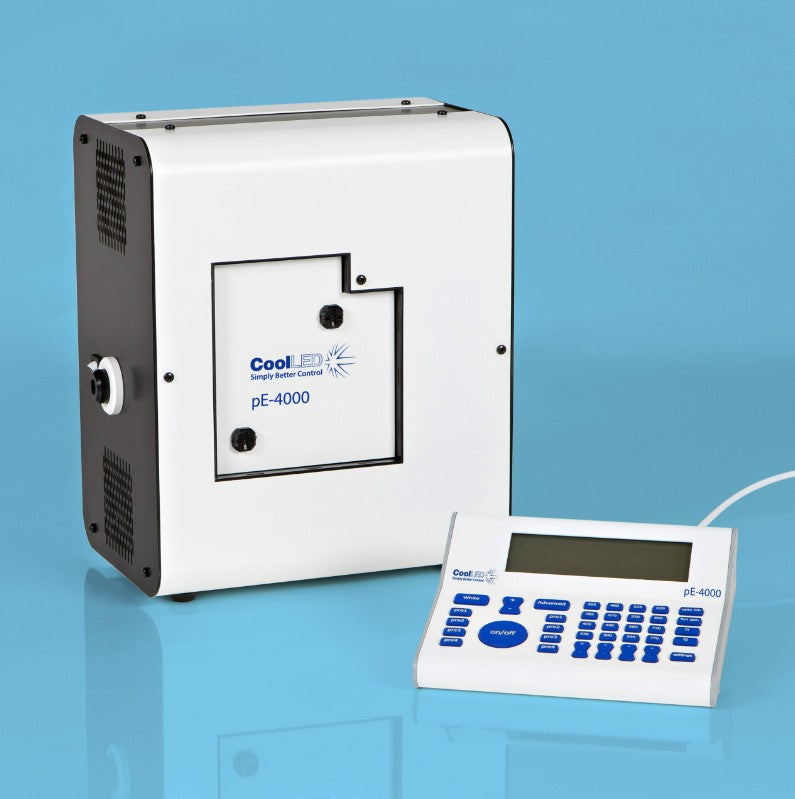

CoolLED pE-4000 LED Illumination System
An advanced four-channel LED illumination system offering 16 selectable wavelengths for fluorescence microscopy, optogenetics and electrophysiology.
Advanced Multi-Wavelength Illumination

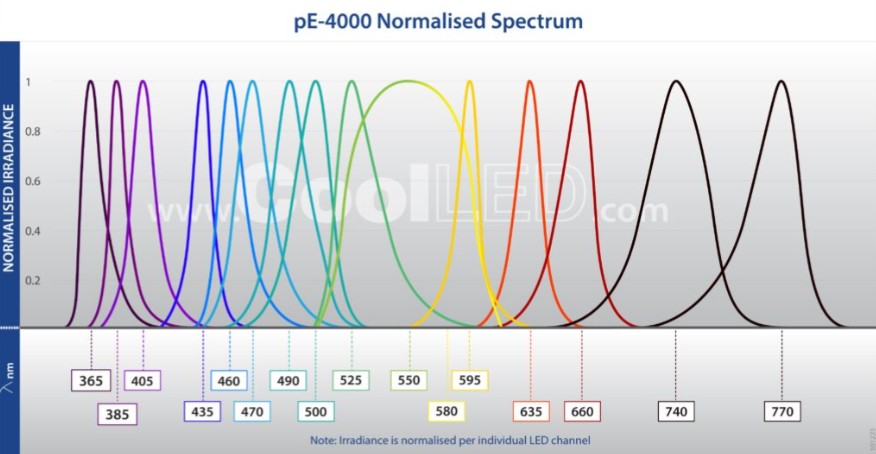

The CoolLED pE-4000 provides selectable LED illumination from 365–770 nm. Sixteen installed LEDs are arranged across four independently controllable channels, allowing the illumination spectrum to be matched closely to microscope filters, fluorophores and experimental requirements.
Rapid electronic switching, precise irradiance control and extensive triggering options make the pE-4000 particularly suitable for demanding fluorescence imaging, live-cell microscopy, optogenetics and electrophysiology.
Key Features
- Sixteen selectable LED wavelengths covering 365–770 nm
- Four independently controllable illumination channels
- Compatible with single-band and multi-band fluorescence filter sets
- Individual irradiance control from 0–100% in 1% steps
- Rapid electronic switching without shutters or filter wheels

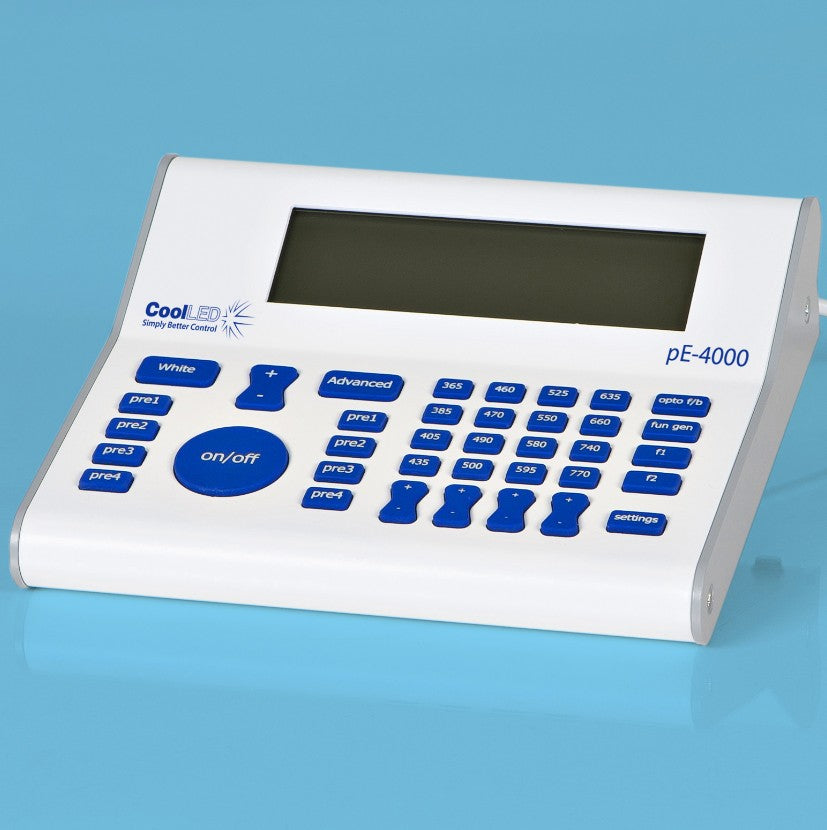

- Manual control through the supplied dual-mode Control Pod
- USB, TTL and analogue control options
- Internal function generator for pulse, sine and ramp waveforms

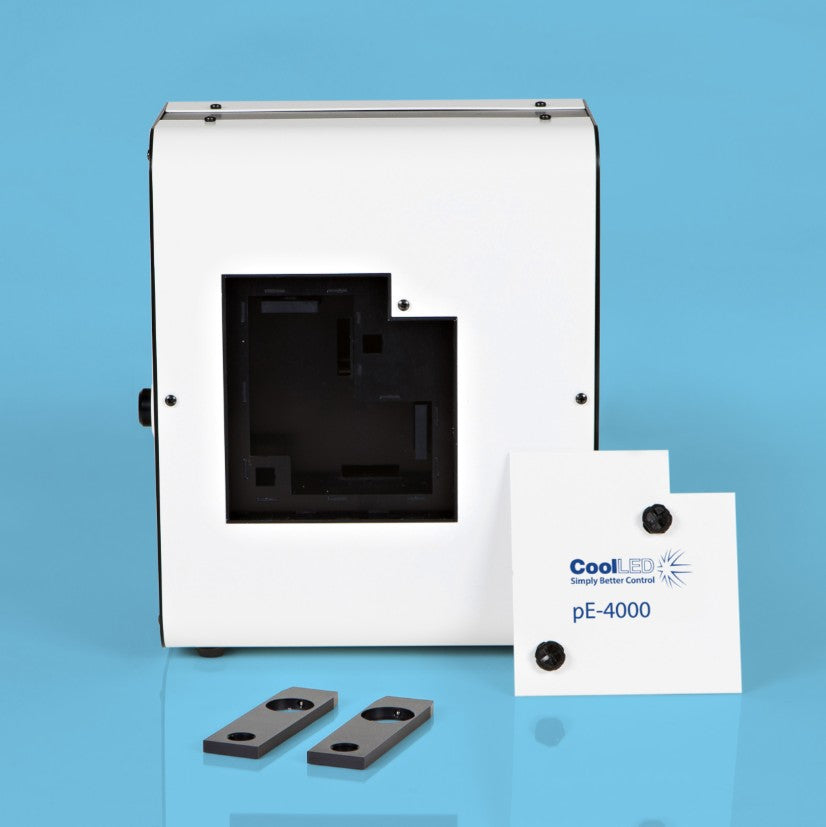

- Removable inline excitation-filter holders
- Stable output with no warm-up or cool-down period
- Mercury-free and laser-free LED technology
- 36-month manufacturer’s warranty
Control Options
- Manual: White or Advanced operation through the Control Pod
- USB: Independent channel switching and irradiance control
- TTL: High-speed triggering with switching below 20 µs
- Analogue: Dynamic 0–10 V irradiance control
- Function generator: Programmable sine, pulse and ramp waveforms
Available Configurations
Select either the liquid-light-guide or fibre-output configuration. The appropriate light-delivery components, microscope adaptor and optical configuration must be selected for the intended microscope.
Unsure which option you need? Contact Auckland Scientific for configuration advice.
Optional Accessories
| Part number | Description | Availability |
|---|---|---|
| pE-1906 | 1.5 m, 3 mm liquid light guide | Price on Request |
| pE-1908 | 3 m, 3 mm liquid light guide | Price on Request |
| pE-10400-YYY | Universal Collimator with microscope-specific adaptor | Price on Request |
| pE-4000-EB25D | Rear-mounted expansion box with 25-pin D connector | Price on Request |
| pE-4000-EFH-4 | Set of four excitation-filter holders for 25 mm filters | Price on Request |
| pE-6501 | Microscope foot-pedal control | Price on Request |
| pE-6501S | Microscope foot-pedal control with speed control | Price on Request |
Extended Warranty Options
- pE-4000-EXT-WRN-1: One-year warranty extension — Price on Request
- pE-4000-EXT-WRN-2: Two-year warranty extension — Price on Request
Technical Resources
Product brochures and supporting documents are available from the Auckland Scientific Technical Resource Centre .
Experienced Microscopy Support
Auckland Scientific has over 21 years of microscopy sales and application experience. We can assist with product selection, wavelength and filter matching, microscope compatibility, system configuration, installation, training and ongoing technical support.
Please note: The microscope, microscope adaptor, optical filters, liquid light guide, collimator, fibre assembly and other accessories are not included unless specifically stated in the selected configuration or quotation.
