DAEIL DVIM-F Basic Pneumatic Vibration Isolator

DAEIL DVIM-F Basic Pneumatic Vibration Isolator

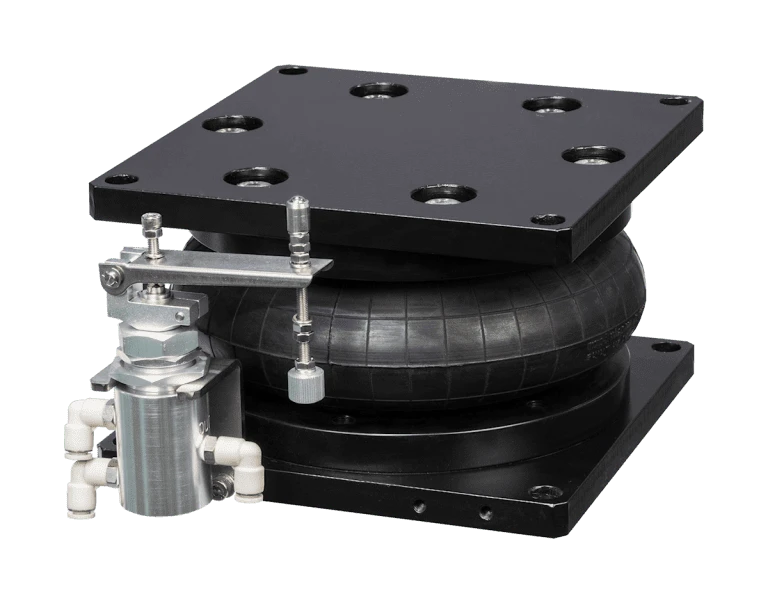

The DVIM-F is DAEIL's economical pneumatic isolator for industrial and laboratory equipment that benefits from stable pneumatic support and automatic levelling but does not require the very low natural frequency of the higher-performance DVIM models.

Key Features

• Heavy-duty reinforced air-spring construction designed for durability and long service life.
• Provides passive isolation in both vertical and horizontal directions.
• Optional internal oil damper can improve settling behaviour where the supported equipment contains moving stages.
• Optional precision levelling system offers ±0.05 mm repeatability for more demanding installations.
• Suitable where cost-effective pneumatic isolation is required for less vibration-sensitive equipment.

Performance

Model Sizes

• DVIM-F-500 — 220 × 220 × 152 mm
• DVIM-F-1000 — 240 × 240 × 152 mm
• DVIM-F-1500 — 300 × 300 × 152 mm
• DVIM-F-2000 — 320 × 320 × 152 mm
• DVIM-F-2500 — 360 × 360 × 172 mm
• DVIM-F-3000 — 380 × 380 × 172 mm

Payload figures are per isolator. The correct number of isolators, load distribution and mounting geometry must be selected for the complete machine or frame.
