DAEIL DVIP-B Pneumatic Isolation Base

DAEIL DVIP-B Pneumatic Isolation Base

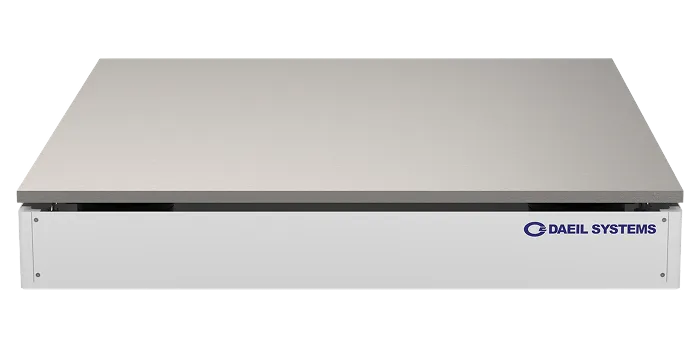

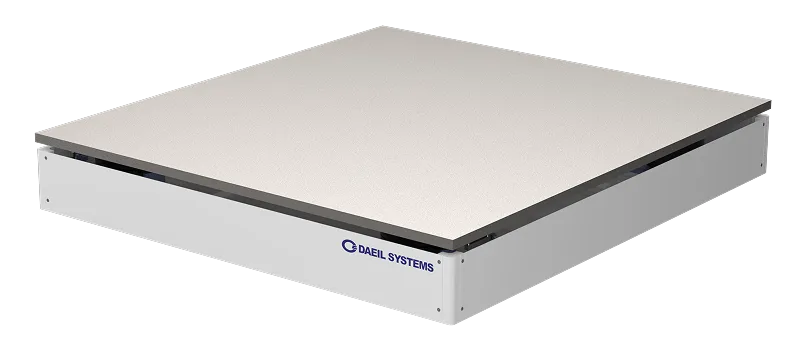

The DVIP-B is a low-profile, custom-engineered pneumatic isolation base for heavy precision instruments including SEM, TEM and metrology systems. Rather than forcing a large instrument onto a standard table, the platform is designed around the exact footprint, load distribution and support points of the equipment.

Designed Around the Instrument

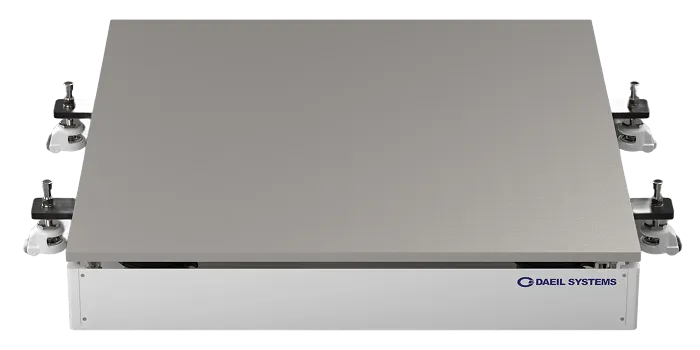

• Custom equipment interface: chassis geometry is matched to instrument dimensions, mass distribution, caster points and mounting positions.

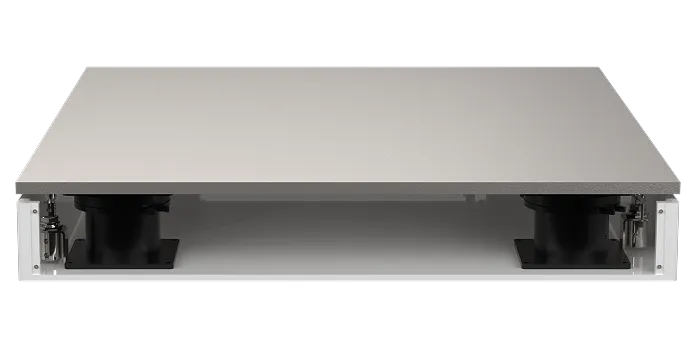

• Low-profile architecture: keeps tall or heavy tools close to their intended operating height.
• High centre-of-gravity stability: useful for electron-microscope columns and other tall precision systems.
• Stainless-steel top surface: durable precision equipment interface.
• Precision levelling option: ±0.05 mm repeatability where required.

Performance

Typical Applications

• Scanning electron microscopes (SEM)
• Transmission electron microscopes (TEM)
• Heavy optical and surface-metrology equipment
• Precision inspection tools with a demanding floor-vibration specification

Quotation information: please provide instrument make/model, total weight, footprint, caster or support-point locations and, where available, the manufacturer's floor-vibration requirement.
