Digital Imaging & Classroom Interaction Upgrades for Zeiss Primo Star

Digital Imaging & Classroom Interaction Upgrades for Zeiss Primo Star Binocular Microscopes

Solution 1 – 48 MP + 15.6-inch 4K Display

£0.00

Digital Imaging & Classroom Interaction Upgrades for Zeiss Primo Star Binocular Microscopes

Price available on request — please contact us for a quote

AUCKLAND SCIENTIFIC DIGITAL IMAGING

Digital Imaging & Classroom Interaction Upgrades for Zeiss Primo Star

Transform a compatible Primo Star binocular microscope into a powerful digital imaging, teaching and interactive-learning station.

Important: This listing is for a digital imaging upgrade system only. The Zeiss Primo Star microscope is not included. Auckland Scientific can supply a suitable microscope separately or configure a complete classroom system.

Upgrade a binocular Primo Star without replacing the microscope

These purpose-designed systems integrate directly with compatible Zeiss Primo Star binocular upright microscopes. They add live digital viewing, image capture, recording and wireless image sharing while preserving normal binocular observation.

A built-in 50:50 optical beam splitter directs light simultaneously to the eyepieces and digital camera. The integrated 0.43× tube lens provides a wide field of view, while the accessible focus adjustment helps synchronise the eyepiece and displayed images.

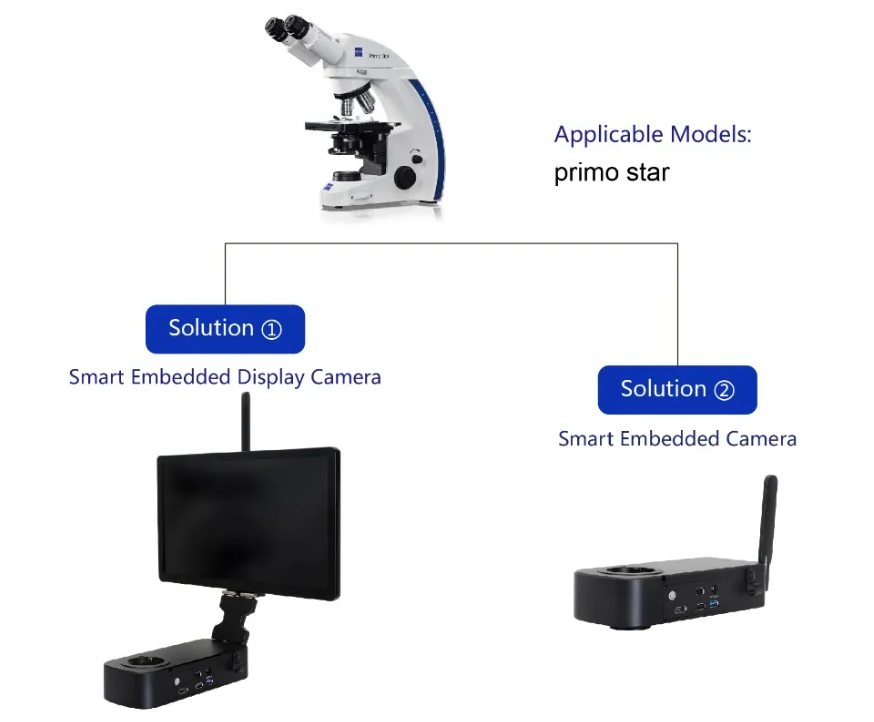

Both options use a high-resolution 48 MP camera with an embedded Android operating system and WiFi 6E connectivity. They can be used as individual imaging stations or incorporated into a suitably configured wireless microscope teaching system.

SOLUTION 1

48 MP Smart Embedded Display Camera

A complete, space-saving PC-free imaging station.

48 MP Sony IMX586 CMOS sensor
Integrated 15.6-inch 4K display
Built-in Android operating system
PC-free live viewing and image capture
WiFi 6E wireless connectivity
DisplayPort output for an additional display
USB connections for a mouse, keyboard and storage
50:50 beam splitter for simultaneous eyepiece and camera viewing
Integrated 0.43× wide-field tube lens
Suitable for individual, classroom and teaching-laboratory use

SOLUTION 2

48 MP Smart Embedded Camera

A flexible PC-free system for an external display.

48 MP Sony IMX586 CMOS sensor
Built-in Android operating system
PC-free live viewing and image capture
WiFi 6E wireless connectivity
DisplayPort output for a monitor, television or projector
USB connections for a mouse, keyboard and storage
Optional 15.6-inch 4K desktop monitor available
50:50 beam splitter for simultaneous eyepiece and camera viewing
Integrated 0.43× wide-field tube lens
Ideal where a larger or existing display will be used

Available configurations

Shopify variant	Model	SKU	Display	Connections
Solution 1 – 48 MP + 15.6-inch 4K Display	TC1200	ED6E-Z-48-H	Integrated 15.6-inch 4K display	WiFi 6E, DisplayPort and USB
Solution 2 – 48 MP Smart Camera	HW800Z	EC6E-Z-48-H	External display required	WiFi 6E, DisplayPort and USB

Which solution should I choose?

Choose Solution 1 when desk space is limited or you want a complete, self-contained station with its own high-quality display.

Choose Solution 2 when you already have a suitable monitor, television or projector or want greater flexibility over the display size.

Camera specification

Specification	Solution 1	Solution 2
Resolution	48 MP	48 MP
Image sensor	Sony IMX586 CMOS	Sony IMX586 CMOS
Maximum resolution	8000 × 6000	8000 × 6000
Sensor size	1/2 inch	1/2 inch
Pixel size	0.8 × 0.8 µm	0.8 × 0.8 µm
Preview performance	8000 × 6000 at 14 fps 4000 × 3000 at 50 fps	8000 × 6000 at 14 fps 4000 × 3000 at 50 fps
A/D conversion	10-bit	10-bit
Wireless standard	WiFi 6E – IEEE 802.11ax	WiFi 6E – IEEE 802.11ax
Power supply	12 V, 3 A	12 V, 3 A
Approximate weight	2.6 kg	1.3 kg

Solution 1 display specification

15.6-inch 4K display with 3840 × 2160 resolution
100% Adobe RGB and 135% sRGB stated colour gamut
1,000 cd/m² stated brightness
1500:1 stated contrast ratio
Anti-glare surface with 3H hardness
170-degree horizontal and vertical viewing range
Blue-light-filtered display

Interactive teaching capability

Multiple upgraded Primo Star microscopes can form the student stations within a suitably configured wireless microscope classroom. The complete interaction system can provide real-time image sharing, tutor monitoring and communication between compatible teacher and student stations.

Please note: This listing covers the selected Primo Star binocular camera upgrade only. The teacher workstation, tutor computer, classroom software configuration and networking equipment are not included unless expressly stated in your quotation.

Compatibility and ordering

Designed for compatible Zeiss Primo Star binocular upright microscopes. Primo Star configurations and viewing-head interfaces can vary, so please provide the exact microscope model or photographs when ordering. Auckland Scientific will check compatibility before supply.

Need multiple systems or a complete teaching laboratory? Auckland Scientific can configure student microscopes, tutor-side equipment, displays and interactive software as a complete classroom package.

Contact Auckland Scientific for multiple-system and classroom pricing.

18-month warranty

Every system includes an 18-month warranty. Extended warranty options are also available – please contact Auckland Scientific for further information.

Specialist support from Auckland Scientific

Benefit from compatibility checking, system configuration and dependable UK-based after-sales support, backed by 21 years of professional microscopy sales experience.

This product is an imaging upgrade only. The microscope, tutor workstation, computer, external display and other equipment shown in application images are not included unless expressly stated. Solution 1 includes its integrated display. Wireless and interactive operation requires compatible equipment and system configuration. Zeiss and Primo Star are trademarks of their respective owner. Product specifications may change as the systems are developed.
