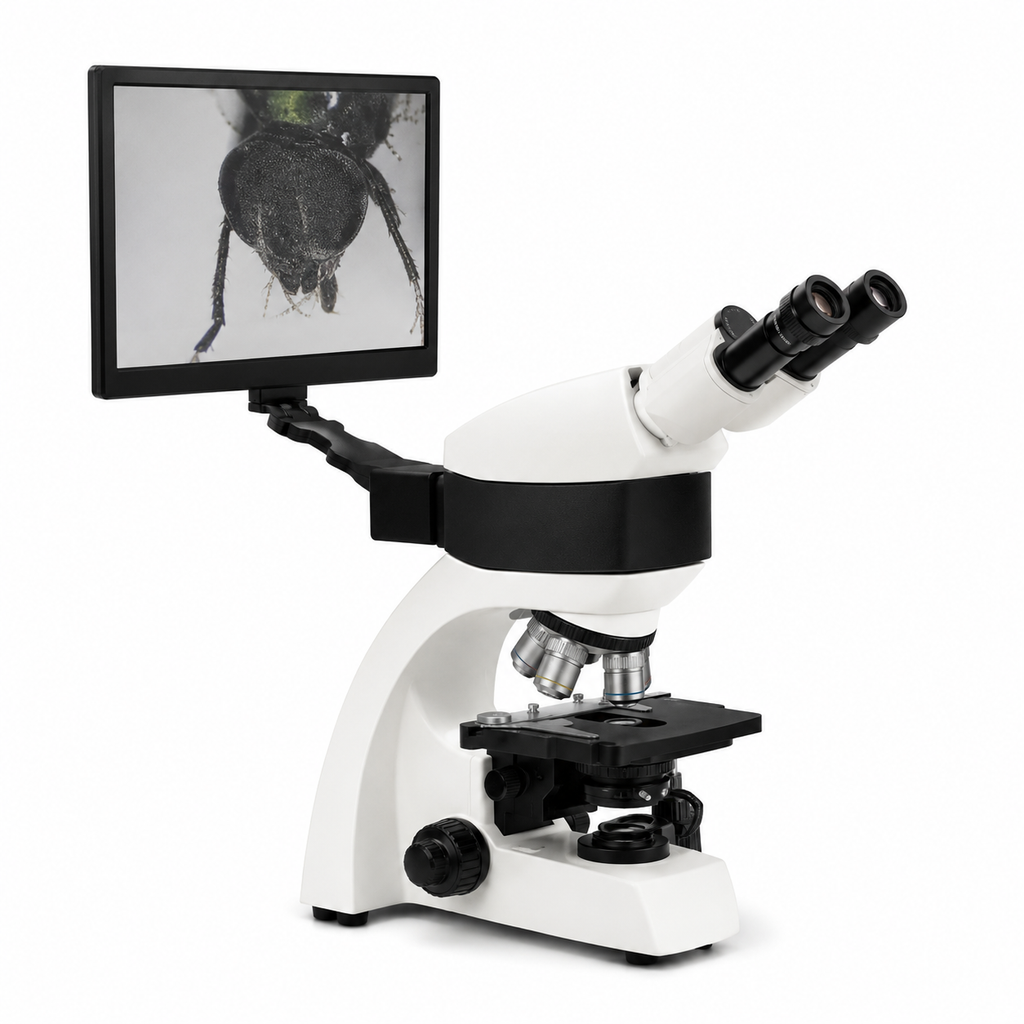

Digital Imaging Upgrades for Leica DM500 & DM750 Microscopes

Transform a compatible Leica binocular microscope into a powerful digital imaging, teaching and documentation system.

Important: This listing is for a digital imaging upgrade system only. The microscope shown in application images is not included. Auckland Scientific can supply a compatible microscope separately – please contact us for advice or a complete-system quotation.

Add digital imaging without replacing your microscope

These purpose-designed upgrade systems integrate with compatible Leica DM500 and Leica DM750 binocular upright biological microscopes. They provide a practical way to add live digital viewing, image capture, video recording, teaching and documentation capabilities while retaining normal binocular observation.

A professional 50:50 NPBS beam-splitter directs light simultaneously to the eyepieces and digital camera. The integrated 0.43× tube lens provides a wide field of view, while the accessible focus adjustment helps synchronise the eyepiece and displayed image.

Choose from three carefully configured Auckland Scientific solutions, ranging from a complete PC-free system with an integrated 15.6-inch 4K display to a straightforward 20 MP USB imaging upgrade for use with a Windows computer.

Click to View PDF

SOLUTION 1

48 MP Smart Embedded Display Camera

A complete PC-free imaging and presentation system.

48 MP Sony IMX586 CMOS sensor
Integrated 15.6-inch 4K display
Built-in Android operating system
PC-free live viewing and image capture
64 GB internal storage
Support for external USB storage
DisplayPort and WiFi 6E output
USB connections for a mouse, keyboard and storage device
Ideal for teaching, presentations and shared viewing

SOLUTION 2

48 MP Smart Embedded Camera

A compact PC-free system for use with an external display.

48 MP Sony IMX586 CMOS sensor
Built-in Android operating system
PC-free live viewing and image capture
64 GB internal storage
Support for external USB storage
DisplayPort connection for a compatible monitor, television or projector
WiFi 6E connectivity for compatible devices
USB connections for a mouse, keyboard and storage device
Optional 15.6-inch 4K desktop monitor available separately

SOLUTION 3

20 MP USB Embedded Camera

A straightforward high-resolution imaging solution for Windows computers.

20 MP Onsemi AR2020 CMOS sensor
Maximum resolution of 5120 × 3840 pixels
Up to 27.5 fps at full resolution
Up to 30 fps at 3840 × 2160
USB connection to a compatible Windows computer
Supplied imaging software for live viewing and capture
Automatic and manual exposure adjustment
Automatic and manual white-balance adjustment
Ideal for routine imaging, reporting and documentation

Solution 1 & 2 Wifi Output

Solution 3 - USB Output

Available upgrade configurations

Shopify variant	Resolution	Display and operation	Principal connections
Solution 1 – 48 MP + 15.6-inch 4K Display	48 MP Sony IMX586 CMOS	Integrated 15.6-inch 4K display Built-in Android system	DisplayPort, WiFi 6E and USB
Solution 2 – 48 MP Smart Camera	48 MP Sony IMX586 CMOS	Built-in Android system External display required	DisplayPort, WiFi 6E and USB
Solution 3 – 20 MP USB Camera	20 MP Onsemi AR2020 CMOS	Compatible Windows computer required	USB

Which solution should I choose?

Choose Solution 1 when you want a complete, self-contained system with its own high-quality 15.6-inch 4K display.

Choose Solution 2 when you already have a suitable monitor, television or projector and want high-resolution PC-free operation.

Choose Solution 3 when you want a straightforward USB camera for use with an existing Windows computer.

Key optical features

Designed for compatible Leica DM500 and DM750 binocular microscopes
50:50 light-splitting design maintains simultaneous eyepiece viewing and digital imaging
Professional NPBS beam splitter supports accurate colour reproduction
Integrated 0.43× tube lens provides a wide field of view
Accessible focus adjustment helps synchronise the eyepiece and displayed image
Automatic and manual exposure adjustment
Automatic and manual red and blue white-balance adjustment

Technical comparison

Specification	Solution 1	Solution 2	Solution 3
Camera resolution	48 MP	48 MP	20 MP
Image sensor	Sony IMX586 CMOS	Sony IMX586 CMOS	Onsemi AR2020 CMOS
Maximum resolution	8000 × 6000	8000 × 6000	5120 × 3840
Sensor size	1/2 inch	1/2 inch	1/1.8 inch
Built-in Android system	Yes	Yes	No
Integrated display	15.6-inch 4K	No	No
Primary output	Display, DP and WiFi	DP and WiFi	USB to Windows PC

Compatibility and ordering

Designed for compatible Leica DM500 and Leica DM750 binocular upright biological microscopes. Please advise your exact microscope model when ordering so Auckland Scientific can verify compatibility and ensure that the correct installation components are supplied.

Need a complete microscope system? Auckland Scientific can supply a suitable microscope separately and configure the camera upgrade as part of a complete digital imaging package. Please contact us for a tailored quotation.

Discounts are available for orders of 10 or more systems.

18-month warranty

Every system includes an 18-month warranty for added reassurance. Extended warranty options are also available – please contact Auckland Scientific for further information.

Specialist support from Auckland Scientific

Benefit from compatibility checking, configuration advice and dependable UK-based after-sales support, backed by 21 years of professional microscopy sales experience.

This product is an imaging upgrade only. The microscope, computer, external display and any other equipment shown in application images are not included unless expressly stated. Solution 1 includes its integrated display. Wireless operation requires a compatible router or device. Product specifications may change as the systems are developed.
