Auckland Scientific Digital Imaging Solutions
Digital Imaging Upgrades for Leica M-Series & MZ-Series Stereo Microscopes
Upgrade a compatible Leica binocular stereo microscope with high-resolution image capture, measurement, wireless sharing or a completely PC-free digital imaging workstation.
Important: This listing is for a digital camera upgrade system only. The Leica microscope shown in product imagery is not included. Auckland Scientific can supply suitable new microscopes separately.
Upgrade Your Existing Leica Stereo Microscope
These dedicated imaging upgrades allow selected Leica binocular stereo microscopes to be converted into powerful digital imaging systems without replacing the original binocular viewing head.
A model-specific optical beam splitter is fitted between the microscope body and viewing head. This allows the operator to continue observing through both eyepieces while simultaneously capturing or displaying a live digital image.

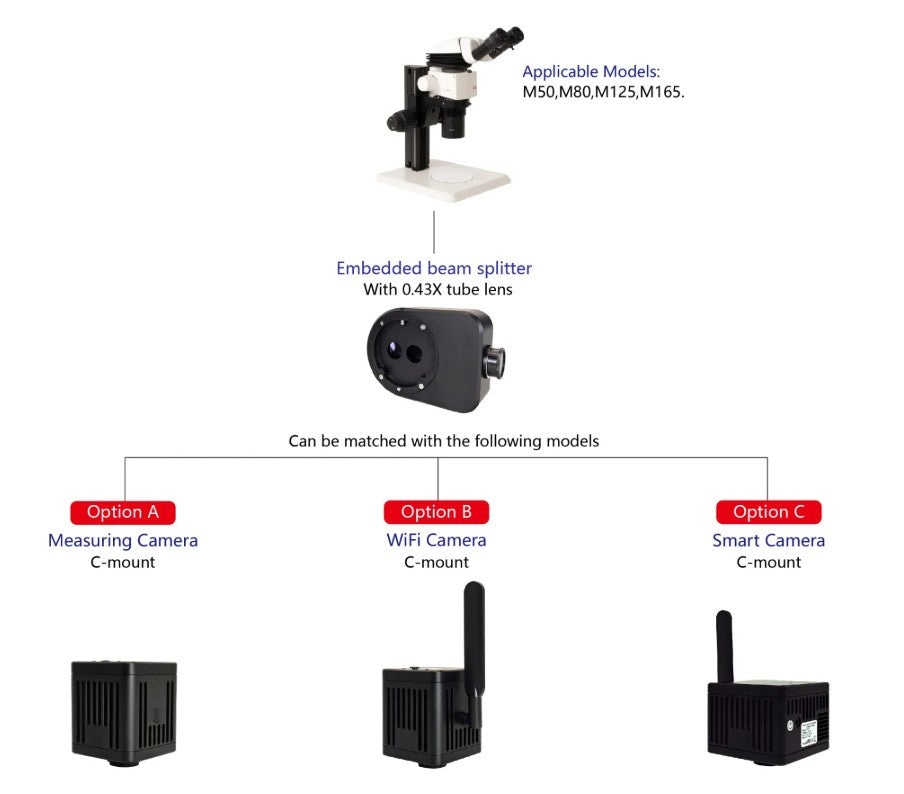

Three configurations are available: a computer-based measuring camera, a flexible Wi-Fi multi-output camera and a self-contained smart-camera system that does not require a computer.
Compatible Leica Stereo Microscopes
This digital imaging upgrade is suitable for the following current and legacy Leica binocular stereo microscopes:
Leica M-Series
Leica M50
Leica M60
Leica M80
Leica M125
Leica M165
Legacy Leica MZ-Series
Leica MZ6
Leica MZ7.5
Leica MZ9.5
Leica MZ12.5
Leica MZ16
Compatibility confirmation: Leica stereo microscopes can have different viewing-head and optical configurations. Please provide the complete model, serial number and photographs of the microscope and head connection before ordering. Auckland Scientific will confirm the correct optical interface.
Choose Your Digital Imaging Solution
Solution 1
USB/HDMI Measuring Camera System
A high-performance digital measuring solution for users who require detailed image capture, video recording, annotation and calibrated on-screen measurement.
Best suited to: quality control, component inspection, measurement, documentation, research and routine industrial microscopy.
- Camera model: MC2000
- Camera configuration: AJ-C-08
- Resolution: 8.3 megapixels
- Image sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Pixel size: 2µm × 2µm
- Maximum output: 3840 × 2160 at up to 60fps
- Connections: USB, HDMI and network
- Live viewing on a computer, monitor or large-format display
- Image capture, video recording, annotation and measurement
- Automatic and manual exposure and white-balance controls
- 12-bit analogue-to-digital conversion
Price: Price on application
Solution 2
Wi-Fi Multi-Output Camera System
A flexible wireless imaging solution that allows microscope images to be displayed and shared across compatible computers, tablets and mobile devices.
Best suited to: collaborative inspection, training, demonstrations, group viewing, image sharing and applications requiring multiple display options.
- Camera model: CF48
- Camera configuration: BJ-C-08
- Resolution: 8.3 megapixels
- Image sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Pixel size: 2µm × 2µm
- Maximum output: 3840 × 2160 at up to 60fps
- Connections: 5GHz Wi-Fi, USB, HDMI and network
- Compatible with Windows, Android and iOS devices
- Wireless live viewing and camera control
- Direct HDMI output to a monitor or large-format display
- Automatic and manual exposure and white-balance controls
- 12-bit analogue-to-digital conversion
Price: Price on application
Solution 3
PC-Free Smart Camera System
A self-contained digital microscopy workstation with an integrated Android operating system. The system can display, capture, record and manage microscope images without requiring a separate computer.
Best suited to: standalone workstations, production areas, teaching, demonstrations and laboratories that want simple PC-free operation.
- Camera model: TE2000
- Camera configuration: CJ-C-08
- Resolution: 8.3 megapixels
- Image sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Pixel size: 2µm × 2µm
- Maximum output: 3840 × 2160 at up to 30fps
- Integrated Android operating system
- Four-core processor with dual-core graphics processing
- 4GB DDR4 RAM and 32GB internal eMMC storage
- 5GHz Wi-Fi and DisplayPort output
- Supports keyboard, mouse and USB storage devices
- Direct connection to a compatible monitor, television or projector
- Optional 15.6-inch high-colour-gamut monitor available
- Office applications pre-installed
Price: Price on application
Dedicated Leica Optical Interface
Each solution uses a dedicated PA043LT embedded Leica beam splitter, subject to final microscope compatibility confirmation.
- 50:50 light-splitting design
- Professional non-polarising beam-splitter prism
- Designed to preserve natural colour reproduction
- Integrated 0.43× tube lens for a wider camera field of view
- Parfocal adjustment for matching camera and eyepiece focus
- Retains comfortable binocular observation
- Allows eyepiece observation and digital imaging simultaneously
Benefits of the Upgrade
Retain Eyepiece Viewing
Continue observing through both eyepieces while the camera displays or captures the image.
Wide Camera Field
The integrated 0.43× optical interface provides a wide and useful camera field of view.
Modern Connectivity
Choose USB, HDMI, network, Wi-Fi or PC-free operation according to your requirements.
Extend Microscope Life
Add modern digital functionality to a proven current or legacy Leica stereo microscope.
Solution Comparison
| Feature | Solution 1 | Solution 2 | Solution 3 |
|---|---|---|---|
| Primary use | PC measurement | Wireless imaging | PC-free operation |
| Camera model | MC2000 | CF48 | TE2000 |
| Resolution | 8.3MP | 8.3MP | 8.3MP |
| Maximum frame rate | 4K at 60fps | 4K at 60fps | 4K at 30fps |
| Wi-Fi | No | Yes | Yes |
| Computer required | For full measurement | Optional | No |
| Direct display output | HDMI | HDMI | DisplayPort |
| Internal operating system | No | No | Android |
System Configuration
The complete configuration will be prepared for the confirmed Leica microscope model and selected camera option. Final inclusions will be shown clearly on the Auckland Scientific quotation.
- Selected digital camera
- Compatible Leica embedded beam-splitter interface
- Integrated 0.43× camera optics
- Required power supply
- Relevant connection cables
- Compatible image-capture and viewing software
A computer, monitor, television, projector, microscope, illumination system and any items not expressly identified on the quotation are not included unless selected separately.
18-Month Warranty
Every Auckland Scientific digital microscope upgrade is supplied with an 18-month warranty. Extended warranty and support packages are also available.
Specialist UK Microscopy Support
Auckland Scientific is a UK-based microscopy and laboratory equipment specialist with 21 years of microscopy sales experience. We can help confirm compatibility, select the most appropriate imaging solution and support installation, configuration and user training.
Our knowledge of current and legacy Leica stereo microscopes enables us to help customers extend the useful life of existing optical equipment by adding modern digital-imaging capabilities.
Information Required Before Ordering
Please provide the following information so that we can confirm compatibility:
- Full Leica microscope model
- Microscope serial number, where available
- Photograph of the complete microscope
- Photograph of the binocular head and its connection to the microscope body
- Your preferred imaging and display method
- Whether measurement capability is required
Need Help Selecting the Correct Solution?
Contact Auckland Scientific for compatibility advice and a complete quotation tailored to your Leica stereo microscope.
Not sure which C-mount adapter suits your camera?
Use our free C-Mount & Camera Sensor Compatibility Checker to compare common camera sensor formats and C-mount adapter magnifications.
