Digital Imaging Upgrades for Nikon ECLIPSE Ts2 Inverted Microscopes
Price available on request — please contact us for a quote
AUCKLAND SCIENTIFIC DIGITAL IMAGING
Digital Imaging Upgrades for Nikon ECLIPSE Ts2
Add high-resolution brightfield imaging, documentation and image sharing to a compatible Nikon ECLIPSE Ts2 inverted microscope.
Important: This listing is for a digital imaging upgrade system only. The Nikon ECLIPSE Ts2 microscope shown in application images is not included. Auckland Scientific can supply a suitable inverted microscope separately or configure a complete imaging system.
Brightfield imaging: These configurations are intended for transmitted-light brightfield imaging with compatible Nikon ECLIPSE Ts2 microscopes. Fluorescence configurations for the Nikon ECLIPSE Ts2-FL are available separately.
Add digital imaging without replacing your microscope
These purpose-designed camera systems integrate with the Nikon ECLIPSE Ts2 inverted microscope, adding live digital viewing, high-resolution image capture, video recording and flexible image-sharing capabilities.
A professional 50:50 NPBS beam splitter preserves normal eyepiece observation while simultaneously directing the image to the camera. The integrated 0.43× tube lens provides a wide field of view, while the accessible focus adjustment helps align the eyepiece and displayed images.
Choose between a flexible multi-output camera for computers, mobile devices and external displays or a complete PC-free system with its own integrated 15.6-inch display.

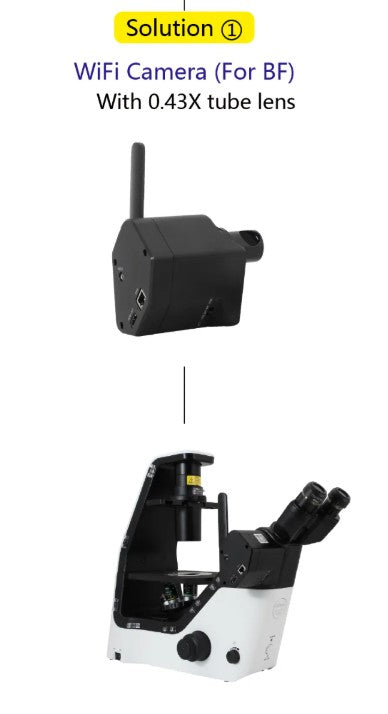

SOLUTION 1
12 MP WiFi Multi-Output Camera
Flexible connectivity for imaging, sharing and documentation.
- 12 MP Sony IMX412 CMOS sensor
- Maximum resolution of 4000 × 3000 pixels
- Up to 30 fps at full resolution
- 5 GHz WiFi connectivity
- USB 2.0 UVC output for compatible Windows software
- HDMI live-view output to a compatible display
- Gigabit network connection for LAN image sharing
- Up to 13 compatible devices can access images over the local network
- 50:50 beam splitter for simultaneous observation and imaging
- Integrated 0.43× wide-field tube lens

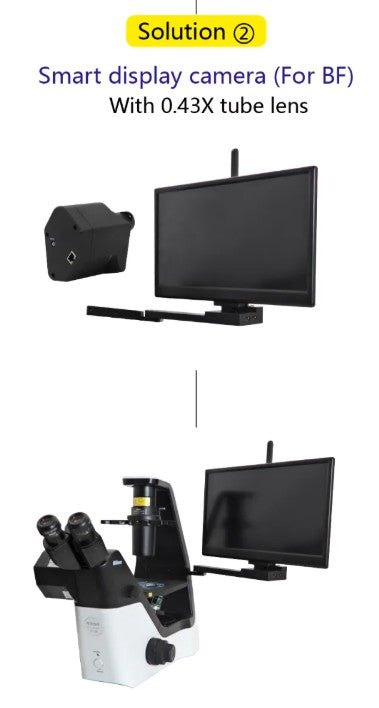

SOLUTION 2
12 MP Smart Display Camera
A complete PC-free imaging and presentation system.
- 12 MP Sony IMX412 CMOS sensor
- Integrated 15.6-inch Full HD display
- Built-in Android operating system
- PC-free live viewing and image capture
- 32 GB internal eMMC storage
- Support for external USB storage
- 5 GHz WiFi and DisplayPort simultaneous output
- Network connection for compatible imaging workflows
- USB connections for a mouse, keyboard and storage
- 50:50 beam splitter and integrated 0.43× tube lens
Available configurations
| Shopify variant | Model | SKU | Display and operation | Principal outputs |
|---|---|---|---|---|
| Solution 1 – 12 MP WiFi Multi-Output Camera | DF12 | GB-NS-12 | Use with a compatible computer, mobile device or display | 5 GHz WiFi, USB 2.0, HDMI and network |
| Solution 2 – 12 MP Smart Display Camera | YY48 | SD-NS-12 |
Integrated 15.6-inch display Built-in Android system |
5 GHz WiFi, DisplayPort, USB and network |
Which solution should I choose?
Choose Solution 1 when flexible WiFi, USB, HDMI and network connectivity is the priority or when you want to use an existing computer or display.
Choose Solution 2 when you want a self-contained, PC-free system with its own display, operating system and internal storage.
Camera specification
| Specification | Solution 1 | Solution 2 |
|---|---|---|
| Physical resolution | 12 MP | 12 MP |
| Image sensor | Sony IMX412 CMOS | Sony IMX412 CMOS |
| Maximum resolution | 4000 × 3000 | 4000 × 3000 |
| Sensor size | 1/2.3 inch | 1/2.3 inch |
| Pixel size | 1.55 × 1.55 µm | 1.55 × 1.55 µm |
| Preview resolution | 4000 × 3000 at 30 fps 3840 × 2160 at 30 fps |
4000 × 3000 at 30 fps 3840 × 2160 at 30 fps |
| Exposure range | 10 µs–333 ms | 10 µs–333 ms |
| A/D conversion | 12-bit | 12-bit |
| Wireless standard | 5 GHz WiFi – IEEE 802.11ac | 5 GHz WiFi – IEEE 802.11ac |
| Tube lens | 0.43× | 0.43× |
Solution 2 display specification
- 15.6-inch display with 1920 × 1080 Full HD resolution
- 100% sRGB stated colour gamut
- 500 cd/m² stated brightness
- 800:1 stated contrast ratio
- Anti-glare surface treatment with 3H surface hardness
- 170-degree horizontal and vertical viewing range
- 16.7 million displayed colours
Compatibility and ordering
Designed for compatible Nikon ECLIPSE Ts2 inverted microscopes configured for transmitted-light brightfield imaging. Please provide the exact microscope model and configuration when ordering so Auckland Scientific can verify compatibility.
Need a complete inverted microscope system? Auckland Scientific can supply a suitable microscope separately and configure the camera as part of a complete digital imaging package.
Contact Auckland Scientific for multi-system and laboratory pricing.
18-month warranty
Every system includes an 18-month warranty. Extended warranty options are also available – please contact Auckland Scientific for further information.
Specialist support from Auckland Scientific
Benefit from compatibility checking, configuration advice and dependable UK-based after-sales support, backed by 21 years of professional microscopy sales experience.
This listing covers brightfield imaging upgrades only. Fluorescence solutions for compatible Nikon ECLIPSE Ts2-FL microscopes are available separately. The microscope, computer, external display and other equipment shown in application images are not included unless expressly stated. Solution 2 includes its integrated display. Wireless operation requires compatible equipment and network configuration. Nikon and ECLIPSE are trademarks of their respective owner.
