Auckland Scientific Digital Imaging Solutions
Digital Imaging Upgrades for the Nikon SMZ745T Stereo Microscope
Add high-resolution image capture, measurement, wireless sharing or a complete PC-free imaging workstation to a Nikon SMZ745T trinocular stereo microscope.
Important: This listing is for a digital camera upgrade system only. The Nikon microscope shown in product imagery is not included. Auckland Scientific can supply a suitable microscope separately.
Upgrade the Existing Trinocular Camera Port
These imaging systems connect to the dedicated camera port of the Nikon SMZ745T trinocular stereo microscope. This retains comfortable binocular observation while providing a separate optical pathway for digital image capture and display.

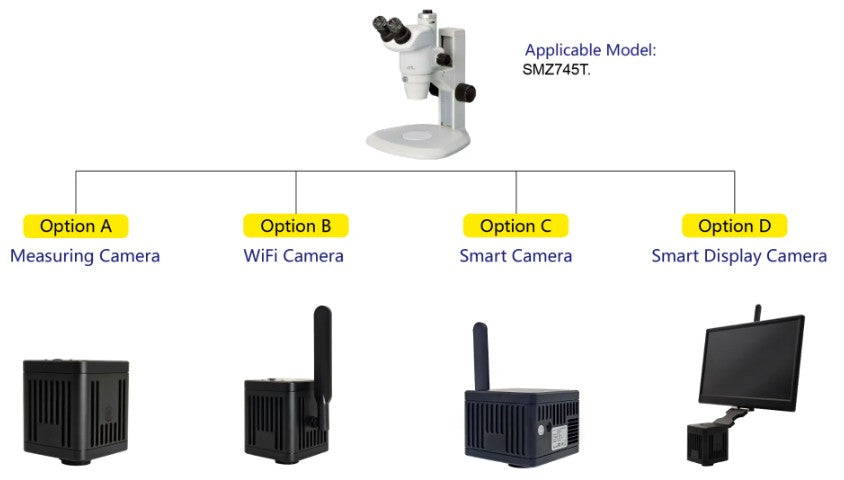

Four configurations are available: a computer-based measuring camera, a Wi-Fi multi-output camera, a PC-free smart camera for use with an external display and an integrated smart-display camera system.
Compatible Microscope
Nikon SMZ745T Trinocular Stereo Microscope
Compatibility confirmation: The microscope must have the Nikon SMZ745T trinocular camera port. Please provide the complete model, serial number and photographs before ordering so that Auckland Scientific can confirm the correct camera optics.
Choose Your Digital Imaging Solution

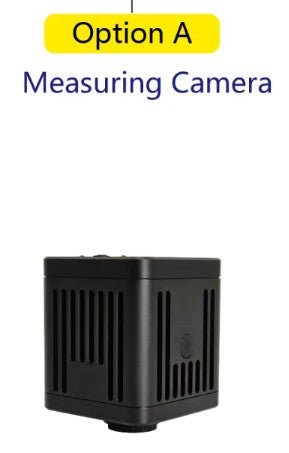

Solution 1
USB/HDMI Measuring Camera System
A high-performance digital measuring solution for users who require image capture, documentation, annotation and calibrated on-screen measurement.
Best suited to: inspection, quality control, component measurement, manufacturing, documentation and research.
- Camera model: MC2000
- C-mount camera SKU: AJ-C-08
- Nikon 0.43× configuration: AJ-N-08
- Resolution: 8.3 megapixels
- Sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Pixel size: 2µm × 2µm
- Maximum output: 3840 × 2160 at up to 60fps
- USB, HDMI and network connectivity
- Live viewing, image capture and video recording
- Annotation, measurement, depth-of-field fusion and image stitching
- Automatic and manual exposure and white-balance controls
Price: Price on application
Solution 2
Wi-Fi Multi-Output Camera System
A flexible wireless imaging system allowing the live microscope image to be displayed, controlled and shared using compatible computers, tablets and mobile devices.
Best suited to: collaborative inspection, training, demonstrations, wireless image sharing and applications requiring multiple output methods.
- Camera model: CF48
- C-mount camera SKU: BJ-C-08
- Nikon 0.43× configuration: BJ-N-08
- Resolution: 8.3 megapixels
- Sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Pixel size: 2µm × 2µm
- Maximum output: 3840 × 2160 at up to 60fps
- 5GHz Wi-Fi, USB, HDMI and network connectivity
- Compatible with Windows, Android and iOS devices
- Direct HDMI output to a monitor or large-format display
- Wireless live viewing and camera control
- Image capture, video recording, depth-of-field fusion and stitching
Price: Price on application
Solution 3
PC-Free Smart Camera System
A self-contained Android digital imaging system for use with a compatible external monitor, television or projector. A separate computer is not required for routine operation.
Best suited to: standalone workstations, production areas, teaching, demonstrations and simple PC-free imaging.
- Camera model: TE2000
- C-mount camera SKU: CJ-C-08
- Nikon 0.43× configuration: CJ-N-08
- Resolution: 8.3 megapixels
- Sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Pixel size: 2µm × 2µm
- Maximum output: 3840 × 2160 at up to 30fps
- Integrated Android operating system
- Four-core processor with dual-core graphics processing
- 4GB DDR4 RAM and 32GB internal storage
- 5GHz Wi-Fi and DisplayPort output
- Supports a keyboard, mouse and USB storage
- Measurement, depth-of-field fusion and image-stitching functions
External display: Required and available separately.
Price: Price on application
Solution 4
Integrated Smart-Display Camera System
A complete PC-free digital microscope workstation combining an Android smart camera with an integrated 15.6-inch Full HD high-colour-gamut display.
Best suited to: complete standalone installations requiring a compact, integrated display without a separate computer or monitor.
- Camera model: JX200
- C-mount camera SKU: DJ-C-08
- Nikon 0.43× configuration: DJ-N-08
- Resolution: 8.3 megapixels
- Sensor: Sony IMX678 CMOS
- Sensor format: 1/1.8 inch
- Maximum output: 3840 × 2160 at up to 30fps
- Integrated 15.6-inch Full HD display
- Display resolution: 1920 × 1080
- Colour gamut: 100% sRGB
- Brightness: 500cd/m²
- Integrated Android operating system
- 4GB DDR4 RAM and 32GB internal storage
- 5GHz Wi-Fi and DisplayPort output
- Supports a keyboard, mouse and USB storage
- Measurement, depth-of-field fusion and image-stitching functions
Price: Price on application
Nikon Trinocular Camera Interface
Each system connects to the existing trinocular camera port of the Nikon SMZ745T using dedicated Nikon-compatible 0.43× camera optics.
- 0.43× reduction optics provide a wide camera field of view
- Focus adjustment helps synchronise camera and eyepiece focus
- The microscope’s binocular eyepieces remain available for normal observation
- No embedded binocular-head beam splitter is required
- Final optical configuration is confirmed before supply
Solution Comparison
| Feature | Solution 1 | Solution 2 | Solution 3 | Solution 4 |
|---|---|---|---|---|
| Primary use | PC measurement | Wireless imaging | PC-free imaging | Complete smart display |
| Camera model | MC2000 | CF48 | TE2000 | JX200 |
| Resolution | 8.3MP | 8.3MP | 8.3MP | 8.3MP |
| Maximum frame rate | 4K at 60fps | 4K at 60fps | 4K at 30fps | 4K at 30fps |
| Wi-Fi | No | Yes | Yes | Yes |
| Computer required | For full measurement | Optional | No | No |
| Display included | No | No | No | 15.6-inch Full HD |
System Configuration
Each system is prepared for the confirmed microscope and selected camera option. Final inclusions will be detailed on the Auckland Scientific quotation.
- Selected digital camera
- Compatible Nikon 0.43× camera optics
- Required power supply
- Relevant connection cables
- Compatible image-capture and viewing software
- Integrated 15.6-inch display with Solution 4 only
The microscope, computer, external monitor, television, projector, illumination system and any items not expressly identified on the quotation are not included.
18-Month Warranty
Every Auckland Scientific digital microscope upgrade is supplied with an 18-month warranty. Extended warranty and support packages are also available.
Specialist UK Microscopy Support
Auckland Scientific is a UK-based microscopy and laboratory equipment specialist with 21 years of microscopy sales experience. We can confirm compatibility, help select the most appropriate solution and support installation, configuration and user training.
Need Help Selecting the Correct Solution?
Contact Auckland Scientific for compatibility advice and a complete quotation tailored to your Nikon SMZ745T.
Not sure which C-mount adapter suits your camera?
Use our free C-Mount & Camera Sensor Compatibility Checker to compare common camera sensor formats and C-mount adapter magnifications.
