Euromex Digital Imaging
Euromex HD-Mini
A compact standalone camera family for quick, direct-to-screen microscope viewing. Connect to an HDMI display, use the built-in mouse-driven controls, and save images or video without needing a computer.
2 MP Sony CMOS sensor
1920 × 1080 capture and live view
HDMI at up to 60 fps
13-inch screen option
Model options
| Model | Configuration |
|---|---|

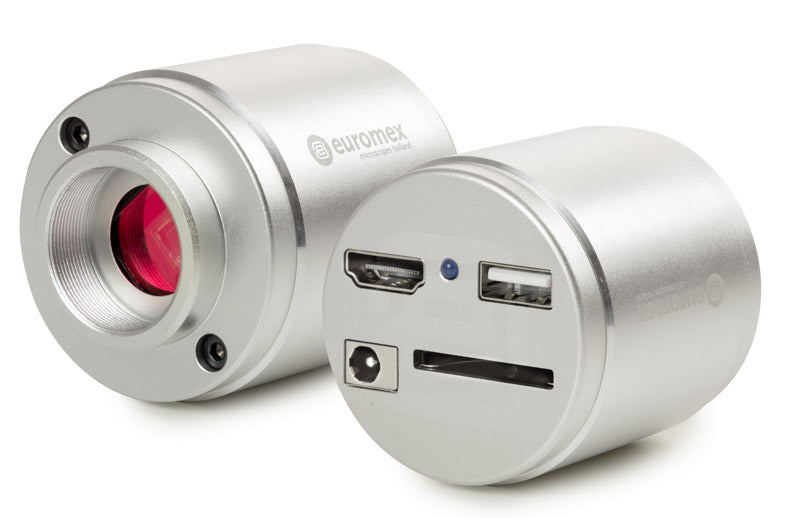

| VC.3023 | HD-Mini standalone camera for a separate HDMI display. |

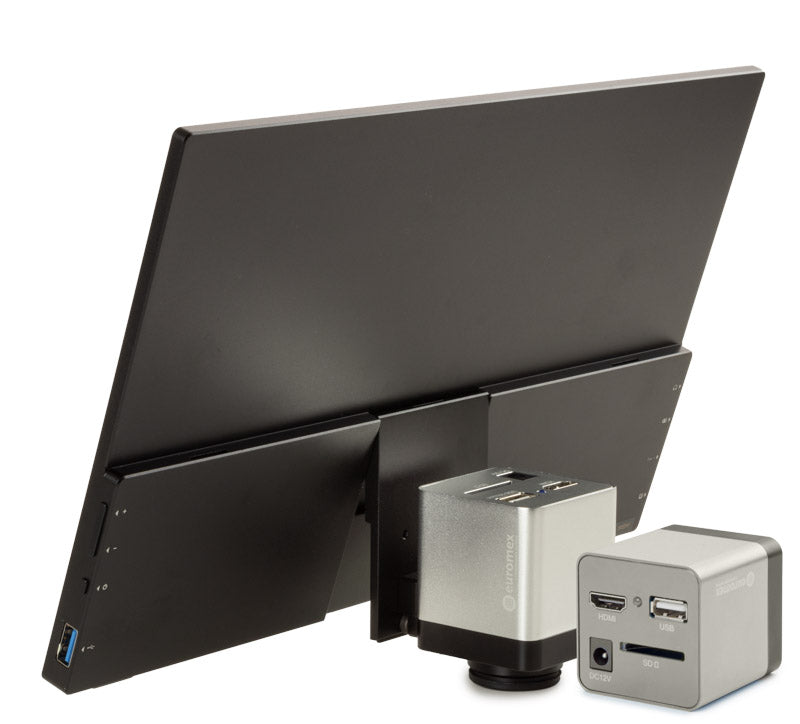

| VC.3024-HDS | HD-Mini camera with integrated 13-inch HD screen. |
Live imaging and built-in tools
The 1/2.8-inch Sony CMOS sensor produces 1920 × 1080 stills and live images. HDMI output supports up to 60 fps under optimal conditions. A 12-bit colour-rendering pipeline, 42 dB signal-to-noise ratio and 69 dB dynamic range support clear colour imaging. Built-in mouse-driven software includes image and video capture, playback, white balance, exposure, zoom, flip, freeze, grids, colour adjustments and measurement functions.
Use the camera as a standalone system with an HDMI television, monitor or projector. It is suited to routine inspection, education and live demonstrations where a simple camera-to-screen workflow is useful.
What’s included and compatibility
The VC.3023 package includes a 0.37× C-mount objective, HDMI cable, 12 V power supply, USB mouse, SD card, calibration slide and conversion rings for 23.2 mm, 30 mm and 30.5 mm microscope tubes. The VC.3024-HDS adds an integrated 13-inch HD screen. Both models use a C-mount interface and HDMI output.
Euromex lists compatibility with its own microscopes and most Zeiss, Leica, Olympus and Nikon models when the correct photo-port adapter is used. Please check your camera port and display input before purchase.
Need help matching a camera to your microscope? We can check the camera port, adapter, monitor and imaging workflow before you order.
Specifications and included accessories can differ by selected model. Please check the model selector and ensure your microscope has a suitable camera port and C-mount adapter. Frame rates depend on resolution, output mode and operating conditions.
