Hellma Type 108 Precision Micro & Semi-Micro Cells – 9 mm Base
108F-QS Fluorescence 10×4 mm, 1 mL
£440.68
Sale price
£440.68
Regular price
Skip to product information
Hellma Type 108 Precision Micro & Semi-Micro Cells – 9 mm Base
£440.68
Sale price
£440.68
Regular price
Hellma Type 108 Precision Cells
Hellma Type 108 micro and semi-micro quartz cells with 9 mm base thickness, including absorption, fluorescence and black-body configurations.
Choose the correct configuration
Select the required variant by measurement type, sample volume and cell construction. If you are unsure which option suits your instrument, Auckland Scientific can help.
Select the required variant by measurement type, sample volume and cell construction. If you are unsure which option suits your instrument, Auckland Scientific can help.
Key Features
- Hellma precision quartz cells for UV/Vis spectroscopy
- High-performance quartz, 200–2500 nm
- 500 µL micro and 1 mL semi-micro options
- 9 mm base thickness
- Thermally bonded construction for chemical and temperature resistance
- Precision optical path for reproducible measurements
- Suitable for common spectrophotometers
- Manufactured in Germany
Available Configurations
| SKU | Configuration | Volume | Wavelength |
|---|---|---|---|

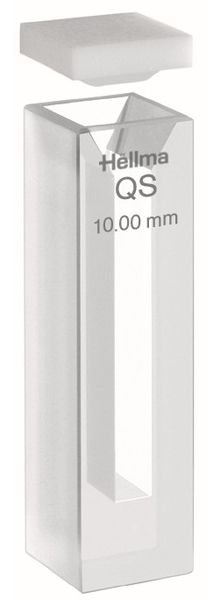

| HL108-000-10-40 | 108-QS Absorption, 10 mm, 9 mm base | 1 mL | 200–2500 nm |

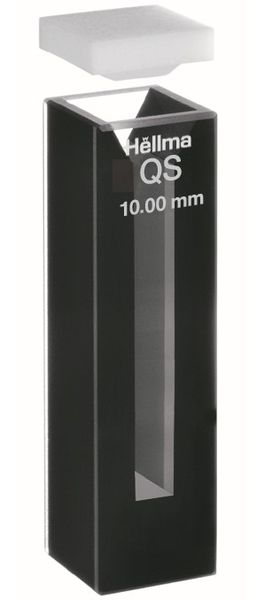

| HL108B-10-40 | 108B-QS Black Body, 10 mm, 9 mm base | 1 mL | 200–2500 nm |

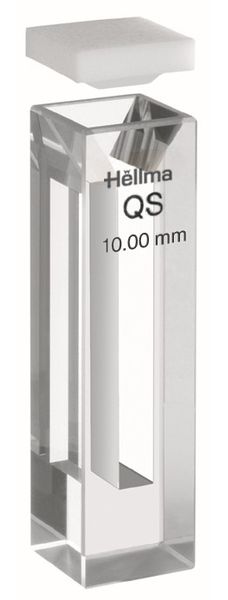

| HL108-F-10-40 | 108F-QS Fluorescence, 10 × 4 mm, 9 mm base | 1 mL | 200–2500 nm |

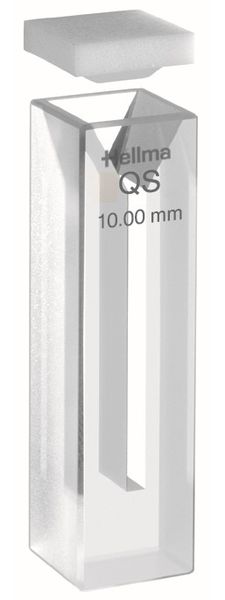

| HL108-002-10-40 | 108.002-QS Absorption, 10 mm, 9 mm base | 500 µL | 200–2500 nm |

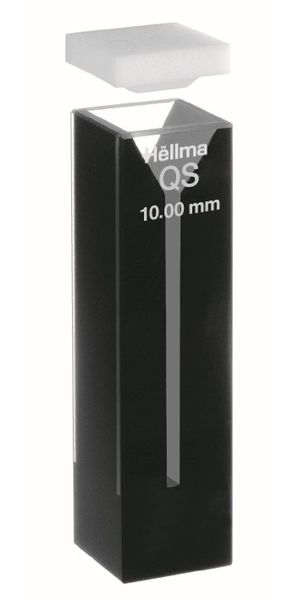

| HL108002B-10-40 | 108.002B-QS Black Body, 10 mm, 9 mm base | 500 µL | 200–2500 nm |

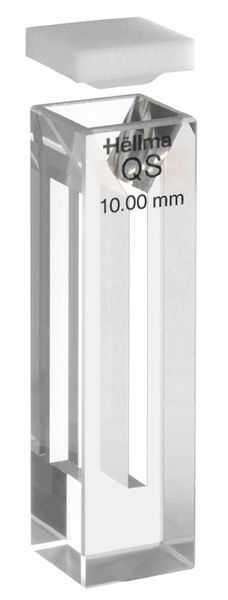

| HL108002F-10-40 | 108.002F-QS Fluorescence, 10 × 2 mm, magnetic stirrer | 500 µL | 200–2500 nm |
Applications
- Low-volume UV/Vis spectroscopy
- Fluorescence measurements
- Applications requiring elevated optical window position
Need help choosing the correct cell?
Contact Auckland Scientific for advice.
Contact Auckland Scientific for advice.
