A fully automated optical microscope platform for nanoscale imaging, with a desktop display, SMAL imaging capability and optional mid-infrared customisation.

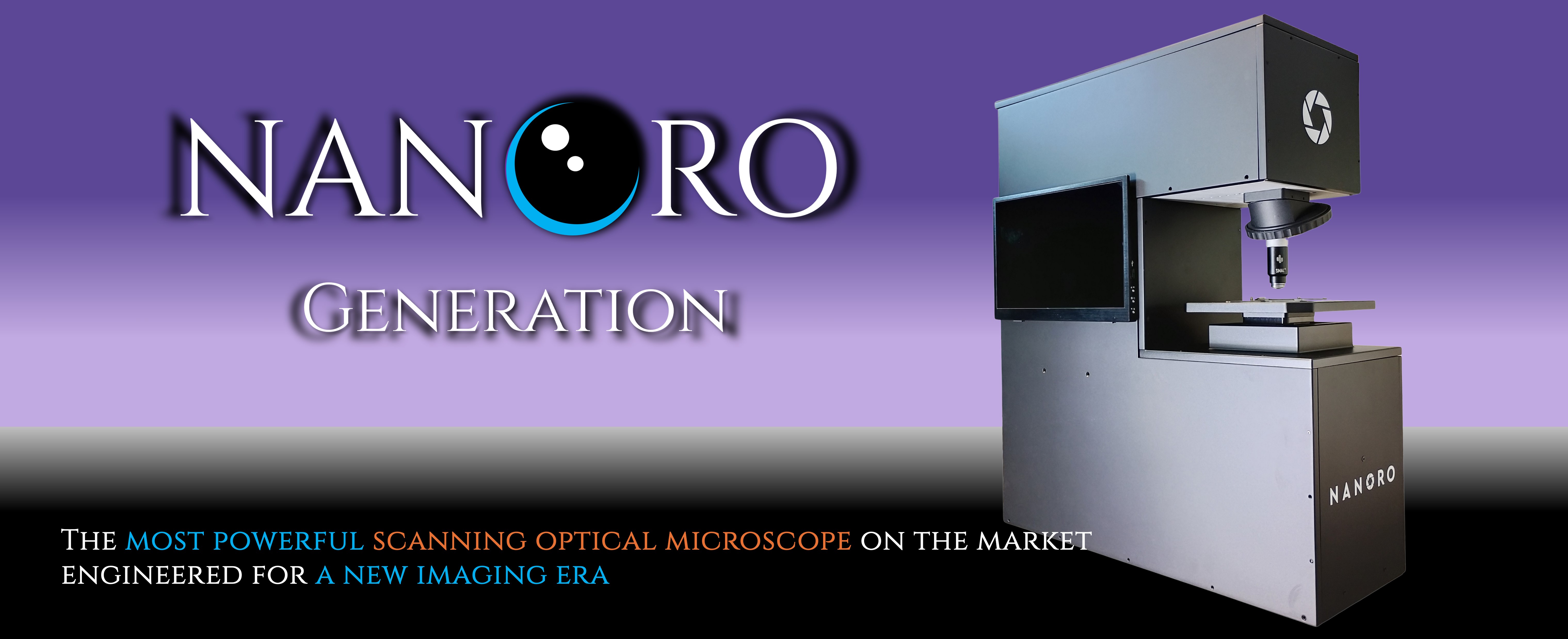

LIG Nanowise Nanoro Generation product image.
The Nanoro Generation builds on LIG Nanowise’s super-resolution optical microscopy platform. Its automated controls, scanning software and image stitching support the capture and review of nanoscale sample detail.
Large-area image stitching 25 × 25 mm scan area, assembled through high-precision image stitching.
Fine Z control 40 mm Z travel with 100 nm precision stated by the manufacturer.
Full-colour viewing CMOS imaging displayed on a 23.5-inch Ultra HD screen, with cold-white LED illumination.
Blue Mode option Narrowband 440–460 nm illumination is stated to reveal features down to 60 nm, depending on the sample and imaging conditions.

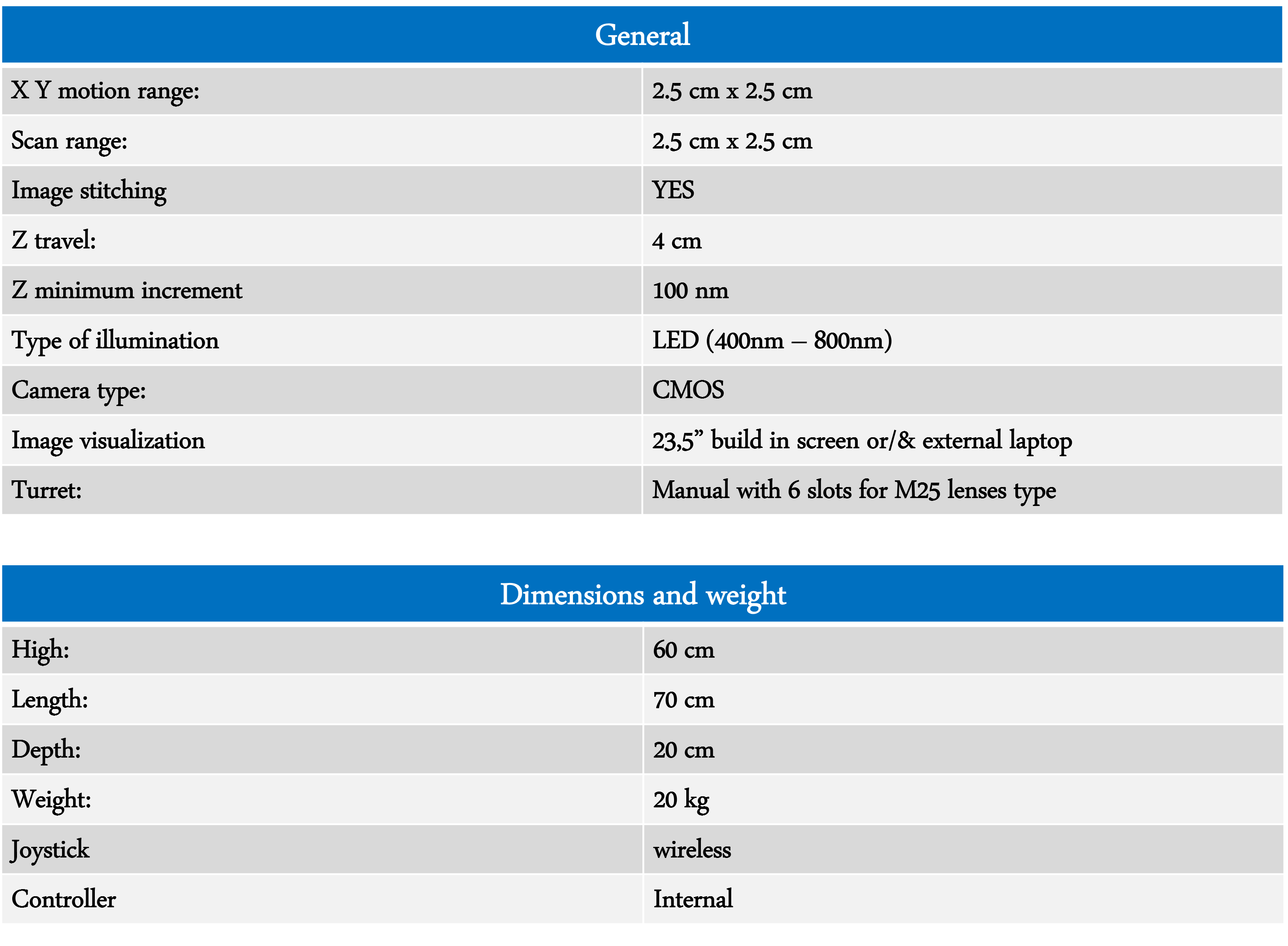

Nanoro Generation specification graphic from LIG Nanowise.
Imaging and control
SMAL microsphere optics support super-resolution imaging using optical illumination.
Blue Mode uses narrowband blue illumination to improve contrast for suitable samples.
The motorised iris aligns the microsphere and illumination beam; the iris is also described as an active contrast control across supported objective magnifications.
The software and wireless joystick provide access to XYZ movement, iris control, illumination settings, scanning and stitching.
The manufacturer describes targeted spectroscopy for regions around 1 µm² or smaller.
Mid-infrared customisation is available by configuration.

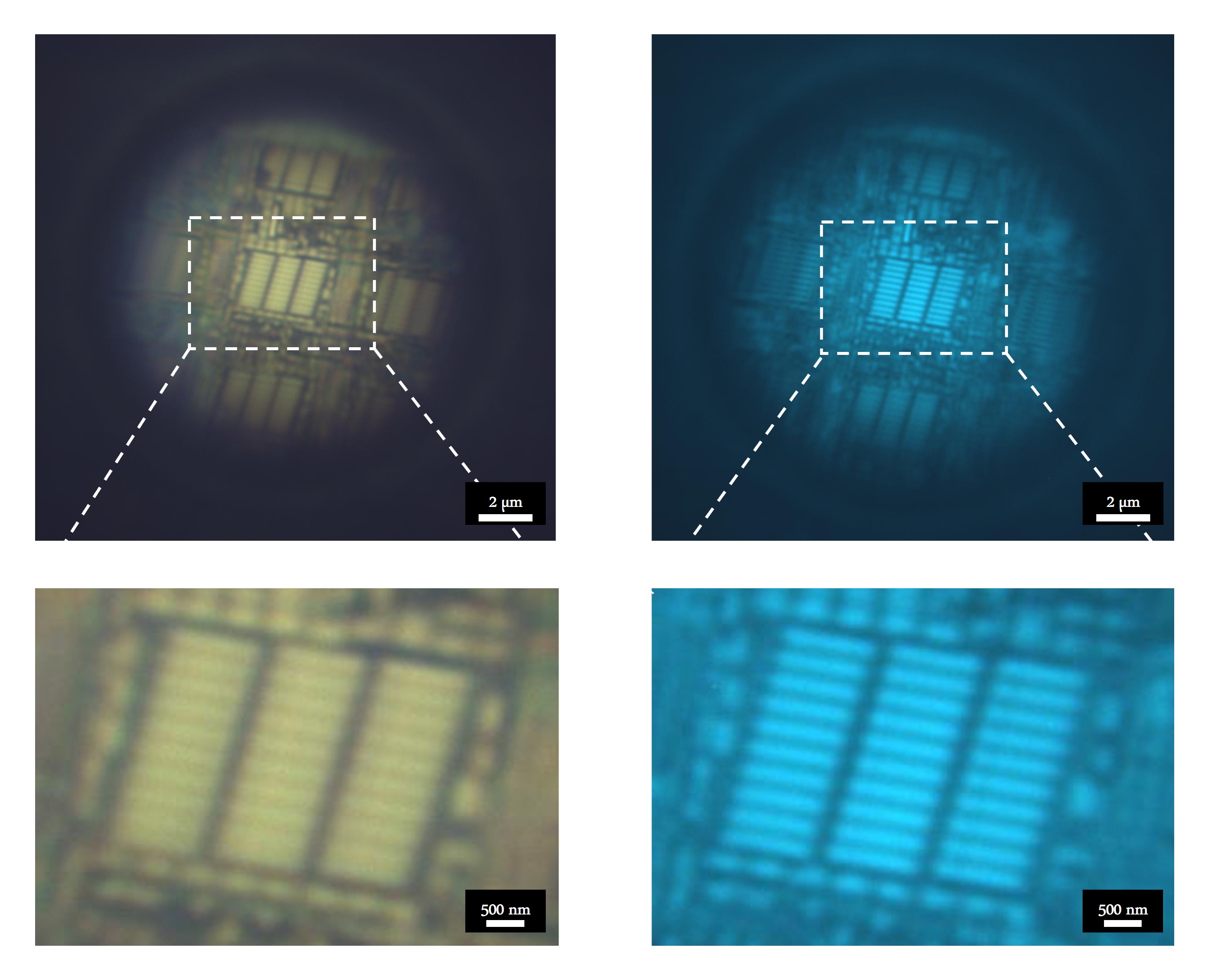

Blue Mode imaging example. Results depend on the sample and configuration.
Full microscope system
The LIG Nanowise price list identifies NANO-G as a full Nanoro G microscope system. Exact supplied components, objective configuration, installation and training can be confirmed for your requirements before quotation.
Price on application
Tell us what you need to image and whether you require Blue Mode, mid-infrared customisation, spectroscopy or a particular objective setup. Request a quote from Auckland Scientific.
The specifications above describe the Nanoro Generation information published by LIG Nanowise and are treated here as the Nanoro G configuration. Confirm the final model configuration and supplied accessories with Auckland Scientific before ordering. Performance depends on the selected setup and sample.
