Neuation iRupt 24P

Programmable Tissue & Cell Homogenizer

High-throughput bead-based homogenisation for up to 24 samples

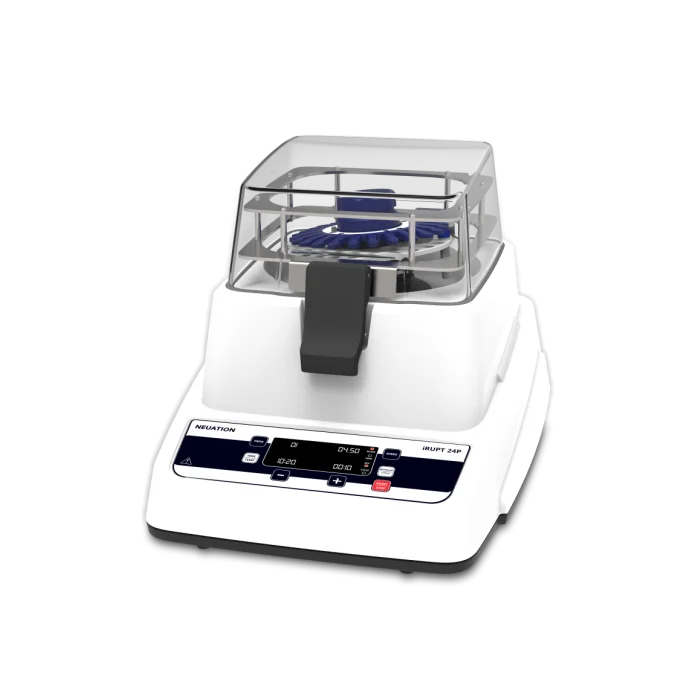

The Neuation iRupt 24P is a powerful programmable bead-beating homogenizer designed for the rapid disruption, grinding and homogenisation of biological samples.

Its high-performance, maintenance-free BLDC motor can process up to 24 × 1.5/2 ml tubes or 12 × 5 ml tubes, making it suitable for laboratories requiring repeatable processing of larger sample batches.

Adjustable agitation speed, programmable run and pause periods, multiple processing cycles and storage for up to 99 user-defined programs provide excellent control over routine and demanding sample-preparation protocols.

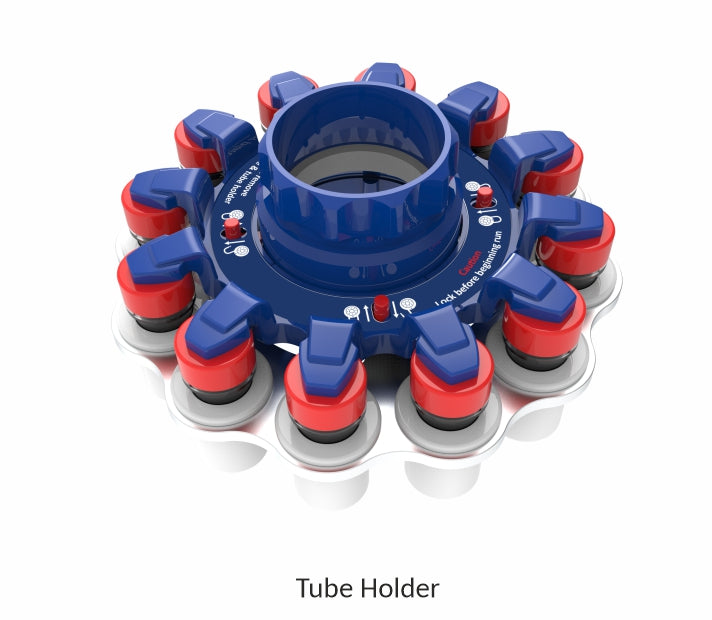

Choose your included sample holder

The iRupt 24P is supplied with one sample-holder plate and lid. Select either the holder for 24 × 1.5/2 ml tubes or the holder for 12 × 5 ml tubes when ordering.

Key Features

Processes up to 24 samples simultaneously
Adjustable agitation speed from 0.80 to 7.50 m/s
Equivalent speed range of approximately 490–4,550 RPM
Maintenance-free BLDC motor for dependable long-term operation
Stores up to 99 user-defined programs
Up to 10 programmable processing cycles
Independently adjustable run and pause periods
Variable cyclic intervals support effective homogenisation while helping to control sample heating
Large digital display and straightforward user interface
Integrated lid-safety lock prevents the lid from opening during operation

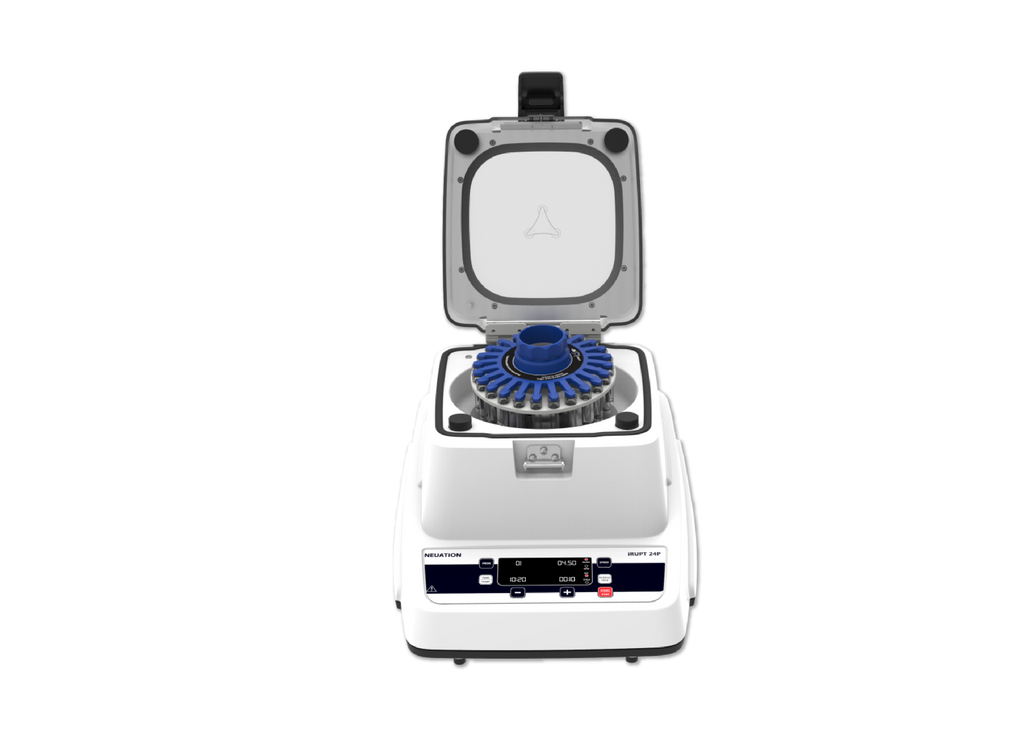

Convenient front-loading chamber for efficient sample loading and removal

Typical Applications

Bacterial cell disruption	Yeast-cell homogenisation
Plant leaves, seeds and roots	Animal and mammalian tissue
Small bone and hard-tissue samples	Cell lysis and biomolecule extraction
DNA and RNA sample preparation	Protein and enzyme extraction workflows

Programmable Processing

Up to 99 user-defined programs can be saved for frequently repeated homogenisation protocols. Each program can incorporate controlled agitation, run time, pause time and multiple cycles.

This enables laboratories to reproduce established processing conditions consistently while reducing repeated manual setup.

Integrated Safety

The enclosed sample chamber and integrated lid-locking system help protect the operator during high-speed processing. The lid remains secured throughout operation, while screw-cap tubes help contain the samples and beads.

Technical Specifications

Sample capacity	24 × 1.5/2 ml or 12 × 5 ml
Agitation speed	0.80–7.50 m/s
Speed adjustment	0.05 m/s increments
Approximate RPM range	490–4,550 RPM
Run time	1–90 seconds, adjustable in 1-second increments
Pause time	10–600 seconds, adjustable in 1-second increments
Processing cycles	Up to 10
Stored programs	Up to 99
Motor	Maintenance-free BLDC motor
Dimensions (W × D × H)	490 × 350 × 315 mm
Weight	32.5 kg
Power supply	230 VAC, 50 Hz
Power consumption	200 W

Supplied as Standard

iRupt 24P programmable homogenizer
One selected sample holder and lid: 24 × 1.5/2 ml or 12 × 5 ml
Power cable
Product user manual
Warranty documentation

Additional Sample Holders

Part number	Description	Price
CH01-AT1	Sample holder and lid for 24 × 1.5/2 ml tubes	£270.00
CH01-AT2	Sample holder and lid for 12 × 5 ml tubes	£270.00

One holder is included with the instrument. The prices above apply only when purchasing an additional or replacement holder.

Compatible Tubes & Homogenising Beads

Part number	Description	Pack size	Price
CH01-A01	2 ml Neuation tubes, non-sterile	1,000	£203.00
CH01-A02	Glass beads, Ø 0.4–0.6 mm	200 g	£40.50
CH01-A03	Glass beads, Ø 0.8–1.2 mm	200 g	£40.50
CH01-A04	Glass beads, Ø 2.5–3.0 mm	200 g	£40.50
CH01-A05	Zirconium beads (94%), Ø 1.0–1.2 mm	200 g	£240.00
CH01-A06	Zirconium beads (94%), Ø 1.4–1.7 mm	200 g	£240.00
CH01-A10	Zirconium beads (94%), Ø 2.6–3.3 mm	200 g	£240.00
CH01-A11	Stainless-steel beads, Ø 2 mm	200 g	£135.00
CH01-A12	Stainless-steel beads, Ø 3 mm	200 g	£135.00

Accessory prices are shown in GBP and follow the supplied price list. VAT and delivery may apply. Bead type and diameter should be selected according to the sample material and required processing method.

Product Video

Watch the iRupt 24P Product Video

Need help configuring your homogenizer?

Contact Auckland Scientific for assistance selecting the correct sample holder, tubes and homogenising beads for your samples and workflow.

Specifications and available configurations may change as part of ongoing product development. Product appearance may differ slightly from the images shown.
