Photonic LED High Power Spot illumination

Single Hi Power Spot Set – 10035

£395.00

Photonic LED High Power Spot illumination

£395.00

High Power Spot Options Single Hi Power Spot Set – 10035 Twin Hi Power Spot Set – 10037 Twin Spot Set with Holders & Baseplates – 10044 Dual Flexible-Arm Spot Set – 10068 Dual Flexible-Arm Spot Set 4000 K – 10063

LED Hi Power Spot Illumination System

Flexible, directional LED illumination for microscopy, imaging and precision inspection

The LED Hi Power Spot Illumination System provides concentrated, directional illumination for stereo microscopy, digital imaging and industrial inspection applications.

Unlike a conventional ring light, the spot system allows illumination to be directed towards the specimen from a chosen angle. This is particularly useful for revealing surface texture, scratches, contours, edges, recesses and other details that may be difficult to see under uniform illumination.

Choose from single-spot, twin-spot or flexible dual-arm configurations to suit different microscopes, stands and inspection tasks.

Click to view PDF

Complete illumination sets

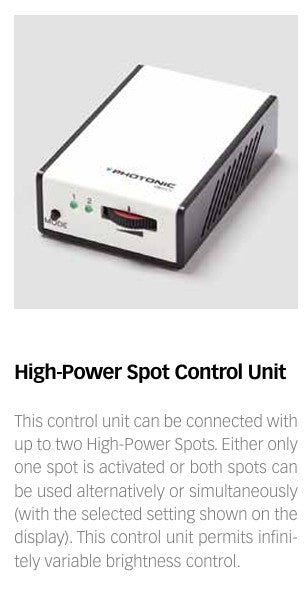

The complete sets include the appropriate control unit and 100-240 V power supply with international adapters. Mounting brackets are required for the dual flexible-arm configurations and are available separately.

Key Benefits

Directional Illumination

Direct the light towards the specimen from the most effective angle.

Enhanced Surface Contrast

Oblique illumination helps reveal textures, scratches, relief and surface defects.

Flexible Configurations

Available as single, twin or independently positioned dual-arm systems.

LED Technology

Efficient, long-life LED illumination for dependable everyday operation.

Available Complete Sets

Configuration	Product Code	Description
Single Hi Power Spot Set	10035	Complete illumination set with one directional LED Hi Power Spot.
Twin Hi Power Spot Set	10037	Complete set with two LED Hi Power Spots for illumination from two directions.
Twin Spot Set with Holders and Baseplates	10044	Complete set with two LED Hi Power Spots, two 300 mm spot holders and two baseplates.
Dual Flexible-Arm Spot Set	10068	Complete dual flexible-arm LED Hi Power Spot set. A compatible mounting bracket is required.
Dual Flexible-Arm Spot Set - 4000 K	10063	Complete dual flexible-arm illumination set with a 4000 K colour temperature. A compatible mounting bracket is required.

Choosing Your Configuration

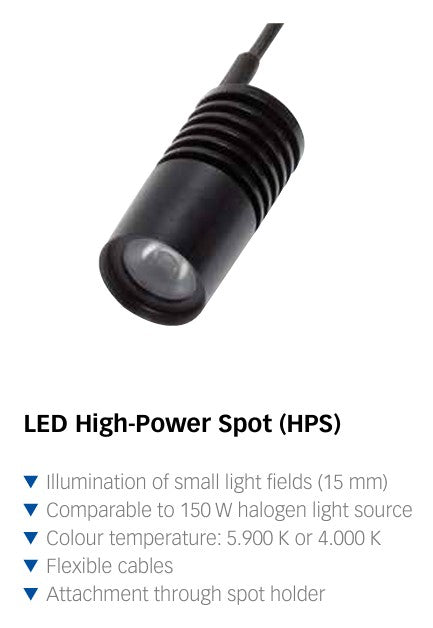

Single Hi Power Spot
A compact solution when concentrated illumination is required from one controlled direction.

Twin Hi Power Spots
Provides greater flexibility, illumination from two directions and improved control over shadows.

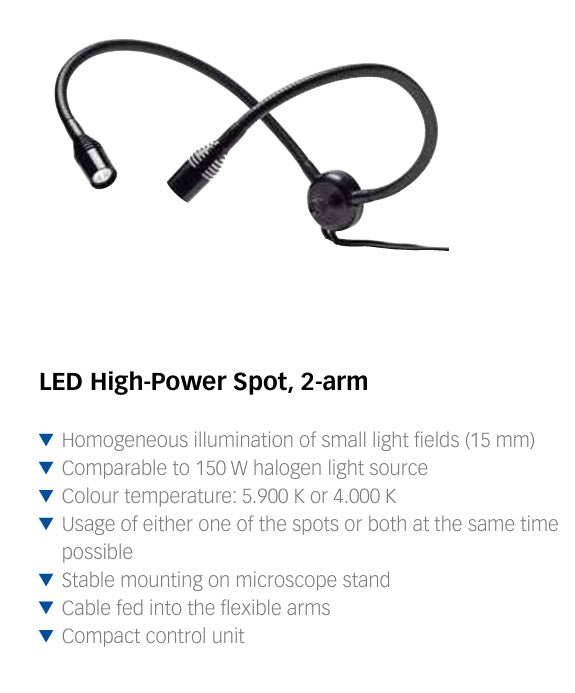

Dual Flexible-Arm System
Allows both light heads to be repositioned quickly for changing specimens and inspection tasks.

Typical Applications

Stereo microscope illumination
Digital microscopy and image capture
Surface texture examination
Electronics and PCB inspection
Precision engineering and component inspection
Scratch, defect and contamination detection
Forensic and laboratory examination
Quality control and manufacturing

Mounting Brackets

The following mounting brackets are available for attaching dual-arm LED Hi Power Spot systems to compatible microscope stands.

Product Code	Description	Price
619-20-048	Adapter for dual-arm Combi Light Guides and LED Hi Power Spots for C-PS, C-DS and SZ2-ST stands	£40.00
619-20-049	Adapter for dual-arm Combi Light Guides and LED Hi Power Spots for stands with 25, 30, 32 or 35 mm pillars	£90.00

Hi Power Spot Accessories

A choice of spot holders and mounting accessories allows the position, height and angle of the illumination to be adapted to the application.

Product Code	Description	Price
619-30-041	M5 Spot Holder for LED Hi Power Spot - 85 mm length	£34.00
619-30-042	M5 Spot Holder for LED Hi Power Spot - 200 mm length	£41.00
619-30-043	M5 Spot Holder for LED Hi Power Spot - 300 mm length	£45.00
619-30-007	Baseplate with three M6 threads and one M6/M5 adapter	£77.00
OPP-00007	Polariser for LED Hi Power Spot	£100.00

Accessory pricing
Accessory prices shown are current list prices and may be subject to change. Please contact Auckland Scientific to confirm availability, compatibility and current pricing before ordering.

Mounting bracket requirement

Products 10068 and 10063 require a compatible mounting bracket. The correct bracket depends on the microscope stand or pillar diameter. Please contact Auckland Scientific if you are unsure which bracket or accessory is required.

Compatibility Assistance

Auckland Scientific can help identify the most appropriate illumination configuration, controller, spot holder and mounting arrangement for your microscope or inspection stand. Please provide the microscope make, model and stand type when contacting us.

Warranty & UK Support

Supplied with manufacturer-backed warranty support through Auckland Scientific. Extended warranty and ongoing technical support options may be available upon request.

Need Advice?

Contact Auckland Scientific for help selecting the correct illumination set, mounting bracket and accessories for your microscope or inspection application.
