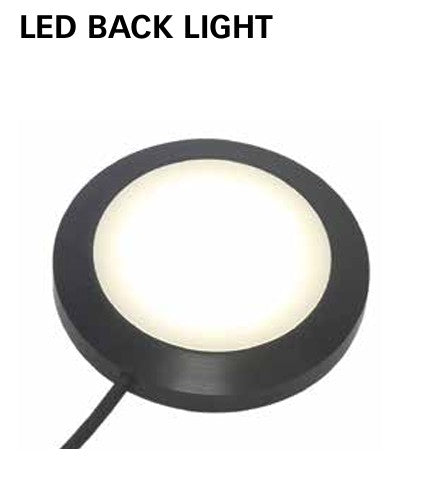

Universal LED Backlight

High-quality transmitted illumination for stereo microscopy, inspection and imaging applications

Click to View PDF

The Universal LED Backlight provides bright transmitted illumination beneath transparent and translucent samples. It is an excellent solution for stereo microscopes, digital imaging systems and visual inspection stations where a conventional transmitted-light base is unavailable or unsuitable.

By illuminating the specimen from below, the backlight helps create a clear silhouette and improves the visibility of edges, profiles, apertures and fine structural details. Its independent design makes it suitable for use with a wide range of microscope stands and inspection arrangements.

Two configurations are available:
Select the complete ready-to-use LED set or the backlight unit alone for integration with a compatible existing illumination system.

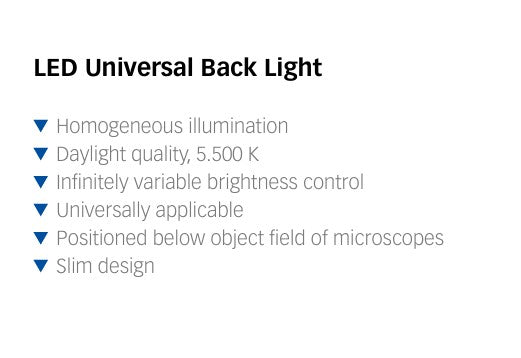

Key Benefits

Transmitted Illumination

Illuminates transparent and translucent specimens from beneath.

Improved Edge Contrast

Ideal for examining outlines, profiles, openings and component geometry.

Flexible Installation

Suitable for integration with many stereo microscopes and inspection systems.

LED Technology

Provides efficient illumination without the frequent lamp replacement associated with traditional light sources.

Available Configurations

Configuration	Product Code	What Is Included
Complete LED Set	10056	Universal LED Backlight, control unit and 100-240 V power supply with international adapters
Backlight Unit Only	619-20-052	Universal LED Backlight only. A suitable controller and power supply are required and are not included.

Important configuration note: For a new installation, select the Complete LED Set. The backlight-only option is intended for customers who already have a compatible controller and power supply or who are integrating the unit into a larger illumination system.

Typical Applications

Stereo microscope observation
Digital microscopy and image capture
Transparent and translucent component inspection
Silhouette and profile examination
Dimensional and edge inspection
Electronics, plastics and precision component inspection
Laboratory and industrial quality-control work

Compatibility Assistance

Not sure whether this backlight will suit your microscope, stand or existing controller? Auckland Scientific can help confirm compatibility before ordering. Please provide the make and model of your microscope or illumination system when contacting us.

Warranty & UK Support

Supplied with manufacturer-backed warranty support through Auckland Scientific. Extended warranty and ongoing technical support options may be available upon request.

Need Advice?

Auckland Scientific can assist with product selection, compatibility and the integration of illumination equipment into new or existing microscopy systems. Contact us to discuss your application.
