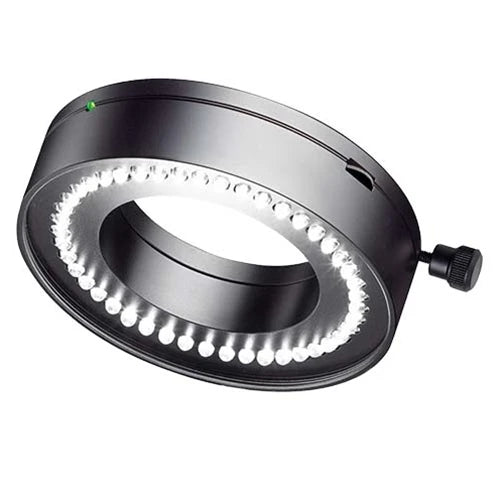

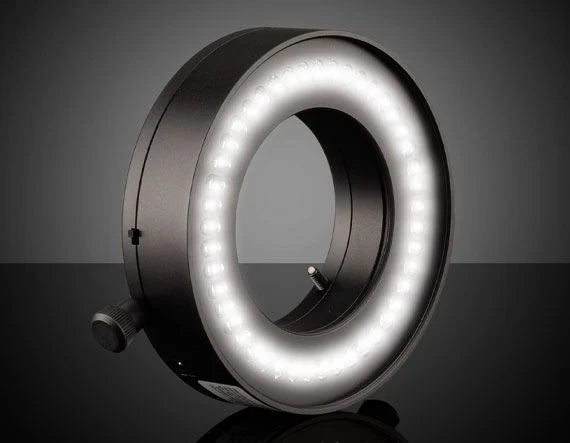

SCHOTT EasyLED Ring Light Ø66 mm for Stereo Microscopy – 600.200
Homogeneous, shadow-free LED ring illumination with integrated brightness control for stereo microscopy and routine inspection.
Simple, Even LED Illumination
The SCHOTT EasyLED Ring Light 600.200 provides bright, highly homogeneous illumination around the optical axis of a stereo microscope.
Unlike directional spot lighting, the ring-light arrangement illuminates the specimen from all around the objective, helping minimise strong directional shadows and providing consistent lighting across the field of view.
The controller is built directly into the ring light, so no separate illumination controller is required.
Key Features
Up to 90,000 Lux
High illumination intensity at a 75 mm working distance.
High illumination intensity at a 75 mm working distance.
Ø66 mm Inner Diameter
Suitable for direct fitting to many stereo microscope objectives.
Suitable for direct fitting to many stereo microscope objectives.
55–135 mm Working Distance
Broad usable working range for routine stereo microscopy.
Broad usable working range for routine stereo microscopy.
Approx. 5600 K
Daylight-type LED illumination for natural specimen appearance.
Daylight-type LED illumination for natural specimen appearance.
Integrated Intensity Control
Adjust brightness directly on the ring light without a separate controller.
Adjust brightness directly on the ring light without a separate controller.
Long-Life LED Illumination
LED lifetime specified at approximately 50,000 hours.
LED lifetime specified at approximately 50,000 hours.
Technical Specifications
Part Number
600.200
600.200
Dimensions
Approx. Ø114 × 29 mm
Approx. Ø114 × 29 mm
Inner Diameter
Ø66 mm
Ø66 mm
Weight
Approx. 0.6 kg
Approx. 0.6 kg
Free Working Distance
55–135 mm
55–135 mm
Maximum Light Intensity
90,000 lux at 75 mm
90,000 lux at 75 mm
Colour Temperature
Approx. 5600 K
Approx. 5600 K
Cooling
Convection
Convection
Power Consumption
Max. 6 VA
Max. 6 VA
Operating Supply
100–240 V AC, 50–60 Hz
100–240 V AC, 50–60 Hz
Why Choose Ring Illumination?
Reduced Shadows
Illumination reaches the specimen from around the optical axis.
Illumination reaches the specimen from around the optical axis.
Homogeneous Field
Provides even illumination for routine observation and imaging.
Provides even illumination for routine observation and imaging.
Simple Operation
Integrated brightness control keeps the system compact and easy to use.
Integrated brightness control keeps the system compact and easy to use.
Stable Imaging
Consistent LED illumination is well suited to microscope photography and documentation.
Consistent LED illumination is well suited to microscope photography and documentation.
Microscope Mounting Adapters
The ring light has a Ø66 mm internal mounting diameter. Adapter options are available for microscopes with smaller objective housings or threaded mounting interfaces.
P/N 157.450
Ø66 mm ring light to Ø58 mm objective
Ø66 mm ring light to Ø58 mm objective
P/N 157.452
Ø66 mm ring light to Ø60 mm objective
Nikon No. 27102
Ø66 mm ring light to Ø60 mm objective
Nikon No. 27102
P/N 157.454
Ø66 mm ring light to M47 × 0.75 thread
Ø66 mm ring light to M47 × 0.75 thread
P/N 157.456
Ø66 mm ring light to M55 × 0.75 thread
Nikon No. 11704
Ø66 mm ring light to M55 × 0.75 thread
Nikon No. 11704
Select the Correct Mounting Configuration
Select the standard Ø66 mm ring light if your microscope accepts the light directly, or choose the appropriate mounting adapter for your microscope objective.
If you are unsure which adapter is required, provide your microscope make and model and Auckland Scientific can confirm the correct configuration before ordering.
Optional Ring Light Accessories
Protection Glass – 400.560
Helps protect the illumination surface in demanding environments.
Helps protect the illumination surface in demanding environments.
Diffuser – 400.570
Softens illumination and helps reduce harsh reflections.
Softens illumination and helps reduce harsh reflections.
Tubular Diffuser – 400.590
Creates softer, more diffuse illumination around three-dimensional specimens.
Creates softer, more diffuse illumination around three-dimensional specimens.
Polariser Set – 400.550
Helps reduce reflections and glare from shiny surfaces.
Helps reduce reflections and glare from shiny surfaces.
EasyLED Ring Light or Ring Light PLUS?
EasyLED Ring Light 600.200
Choose this version for straightforward, homogeneous full-ring illumination with manual intensity control.
Choose this version for straightforward, homogeneous full-ring illumination with manual intensity control.
EasyLED Ring Light PLUS 600.300
Choose the PLUS model where electronically selectable illumination segments and directional contrast are required.
Choose the PLUS model where electronically selectable illumination segments and directional contrast are required.
SCHOTT EasyLED System Diagram
The EasyLED range includes ring lights, spot illumination, transmitted-light systems, mounting adapters, diffusers and polarisation accessories.
Click the diagram to view full size.
How to Choose the Right Ring Light
SCHOTT explains how working distance, specimen geometry and required contrast affect the choice of ring illumination for stereo microscopy.
Typical Applications
Stereo Microscopy
Homogeneous illumination for routine observation.
Homogeneous illumination for routine observation.
Industrial Inspection
Even lighting of manufactured components and assemblies.
Even lighting of manufactured components and assemblies.
Electronics
Bright illumination for PCB and component inspection.
Bright illumination for PCB and component inspection.
Biological Observation
Uniform reflected illumination for opaque biological specimens.
Uniform reflected illumination for opaque biological specimens.
Digital Imaging
Stable LED illumination for image capture and documentation.
Stable LED illumination for image capture and documentation.
Quality Control
Consistent lighting for repeatable visual inspection.
Consistent lighting for repeatable visual inspection.
Technical Resources
SCHOTT EasyLED brochures, manuals and microscopy illumination resources are available through the Auckland Scientific Technical Resource Centre.
Auckland Scientific – Illumination Support
Tell us your microscope make and model, objective diameter and application and we can help confirm the correct EasyLED ring light adapter and optional diffuser or polarisation accessories.
Power supply is included with the EasyLED Ring Light. Microscope adapters, protection glass, diffusers and polarisation accessories are supplied separately unless specifically included in the selected configuration. Product specifications are subject to manufacturer changes.
