SCHOTT EasyLED Spot Light PLUS Systems for Stereo Microscopy – Single & Dual
Powerful direct LED spot illumination with flexible gooseneck positioning for stereo microscopy, inspection and macroscopy.
Flexible Directional LED Illumination
The SCHOTT EasyLED Spot Light PLUS provides intense directional LED illumination without the separate fibre-optic light source and light guide required by a conventional cold-light system.
Each flexible gooseneck light head can be positioned around the specimen to change the direction and angle of illumination, making surface structure, relief, edges and defects easier to see.
Choose a Single Spot for straightforward directional illumination or the Dual Spot for greater control of shadows and contrast from two independently positionable light heads.
Key Features
130 lm per Spot
Powerful direct LED illumination for microscopy and inspection.
Powerful direct LED illumination for microscopy and inspection.
Approx. 5600 K
Daylight-type illumination with consistent colour temperature.
Daylight-type illumination with consistent colour temperature.
Continuous Dimming
Adjust the brightness to suit the specimen and application.
Adjust the brightness to suit the specimen and application.
Integrated Controller
No separate external illumination controller is required.
No separate external illumination controller is required.
Flexible Goosenecks
Position the light precisely and it remains in the selected position.
Position the light precisely and it remains in the selected position.
Long-Life LEDs
SCHOTT specifies an LED lifetime of approximately 50,000 hours.
SCHOTT specifies an LED lifetime of approximately 50,000 hours.

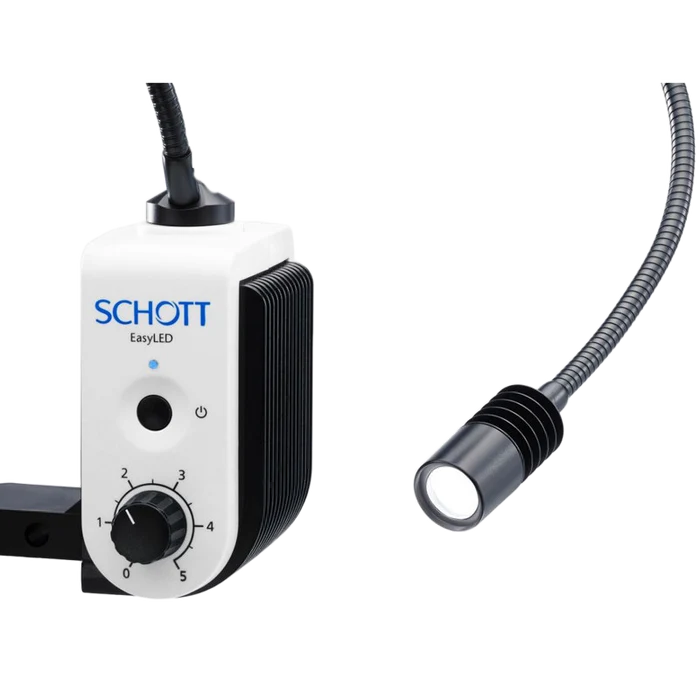

EasyLED Spot Light PLUS Single
SCHOTT P/N 600.101
The Single version uses one flexible LED light head for strong directional illumination from a selected angle.
It is particularly useful where oblique lighting is required to create shadows and increase visibility of surface texture or relief.
Light output: 130 lm
Number of light heads: 1
Power supply: Included

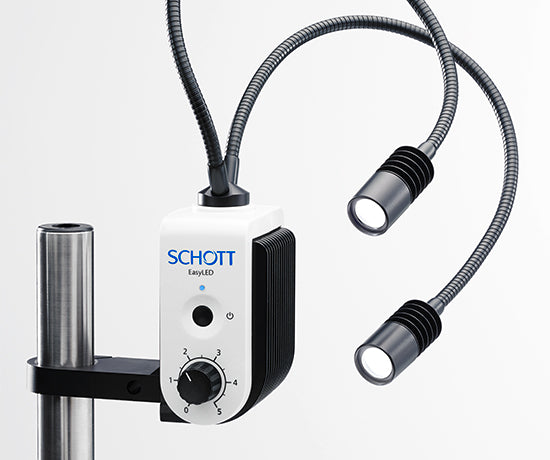

EasyLED Dual Spot Light PLUS
SCHOTT P/N 600.121
The Dual version provides two independently positionable LED light heads.
The illumination mode can be changed between the individual heads and both heads together, allowing the direction of illumination and resulting specimen contrast to be altered without physically changing the microscope.
Light output: 130 lm per spot
Number of light heads: 2
Independent head selection: Yes
Power supply: Included
Change the Contrast by Moving the Light
Directional illumination can reveal features that are difficult to see under uniform ring lighting.
Surface Texture
Low-angle light creates shadows that make fine texture easier to identify.
Low-angle light creates shadows that make fine texture easier to identify.
Scratches & Defects
Change the light angle to reveal directional scratches and imperfections.
Change the light angle to reveal directional scratches and imperfections.
Shadow Control
The Dual version allows illumination from opposing directions.
The Dual version allows illumination from opposing directions.
Reflective Surfaces
Reposition the light heads to help manage direct reflections.
Reposition the light heads to help manage direct reflections.
Choose the Correct Mounting Option
The EasyLED Spot Light PLUS requires a suitable mounting bracket. Auckland Scientific offers the system with mounting options for common microscope stands and columns.
P/N 120.216
For compatible C-PS, C-DS and C-LEDS stands
For compatible C-PS, C-DS and C-LEDS stands
P/N 120.220
For Ø20 mm column
For Ø20 mm column
P/N 120.225
For Ø25 mm column
For Ø25 mm column
P/N 120.229
For Ø30 mm column
For Ø30 mm column
P/N 120.232
For Ø32 mm column
For Ø32 mm column
P/N 120.235
For Ø35 mm column
For Ø35 mm column
Standalone Base
P/N 120.250 together with accessory base P/N 158.340
P/N 120.250 together with accessory base P/N 158.340
Complete Mounting Configurations
Select Single or Dual and then choose the mounting arrangement for your microscope.
If you are unsure of the microscope column diameter or stand type, contact Auckland Scientific before ordering and we can confirm the correct adapter.
Optional Optical Filters
Filters screw onto the EasyLED Spot Light PLUS heads and allow the illumination characteristics to be changed for different specimens.
600.600
Polarising filter
Polarising filter
600.650
Red filter
Red filter
600.660
Blue filter
Blue filter
600.670
Green filter
Green filter
600.680
Yellow filter
Yellow filter
600.690
Halogen filter
Halogen filter
SCHOTT EasyLED System Diagram
The EasyLED range includes Spot Lights, Ring Lights, transmitted-light illumination, filters, diffusers, polarisation components and a wide range of mounting accessories.
Click the diagram below to explore the complete EasyLED system.
Click the diagram to view full size.
Typical Applications
Stereo Microscopy
Adjustable directional illumination for three-dimensional samples.
Adjustable directional illumination for three-dimensional samples.
Industrial Inspection
Reveal surface detail on manufactured components.
Reveal surface detail on manufactured components.
Electronics
Position illumination precisely around PCBs and small assemblies.
Position illumination precisely around PCBs and small assemblies.
Surface Analysis
Strong directional contrast for scratches and surface relief.
Strong directional contrast for scratches and surface relief.
Quality Control
Flexible lighting for routine component inspection.
Flexible lighting for routine component inspection.
Macroscopy
Powerful direct LED lighting for larger fields of view.
Powerful direct LED lighting for larger fields of view.
Technical Resources
SCHOTT EasyLED brochures, manuals, product demonstrations and technical information are available through the Auckland Scientific Technical Resource Centre.
Auckland Scientific – Illumination Support
The correct mounting bracket depends on the microscope stand or column diameter.
Tell us your microscope make and model and we can help confirm the correct EasyLED Spot Light PLUS configuration before ordering.
Power supply is included with the EasyLED Spot Light PLUS. Mounting hardware is included only where specified in the selected configuration. Optical filters and other accessories are supplied separately unless specifically included. Product specifications are subject to manufacturer changes.
