SCHOTT VisiLED MC 1500 Advanced Dual-Channel LED Illumination Systems for Stereo Microscopy

Advanced two-channel VisiLED control for demanding stereo microscopy, imaging, inspection and automated illumination applications.

Advanced Control of Up to Two VisiLED Light Heads

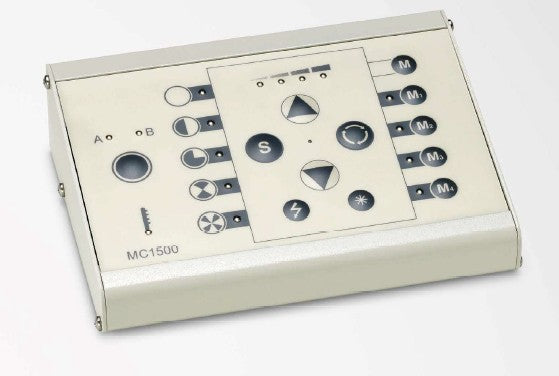

The SCHOTT VisiLED MC 1500 is the advanced controller within the VisiLED illumination platform, offering extensive control over light intensity, segment selection and illumination direction.

Unlike the single-channel MC 1100 controllers, the MC 1500 can control two compatible VisiLED illumination heads, allowing sophisticated combinations such as brightfield and darkfield or incident and transmitted illumination.

Auckland Scientific supplies these configurations as complete UK systems with the selected VisiLED light head, MC 1500 controller, power supply and UK mains lead.

The MC 1500 can control up to two compatible VisiLED light heads. Each standard system option on this page includes one selected light head. A second compatible light head can be added separately where a dual-illumination configuration is required.

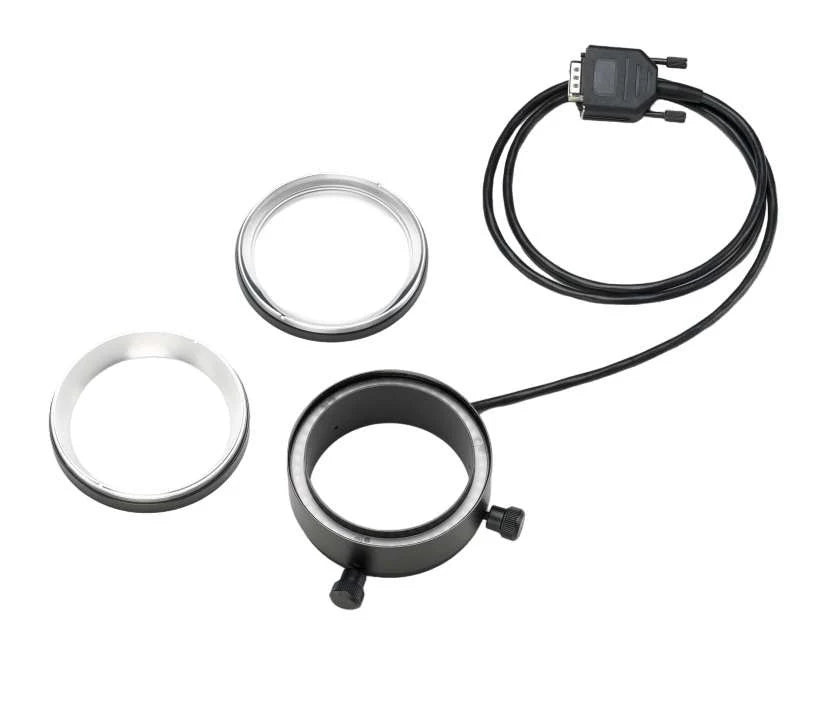

VisiLED Slim Ring Light – P/N 400.150

Compact low-profile ring illumination for installations with restricted space around the microscope objective.

Inner diameter: Ø66 mm
Working distance: 20–90 mm

VisiLED S80-55 Brightfield – P/N 400.255

High-performance segmented brightfield illumination for general stereo microscopy, imaging and surface inspection.

Inner diameter: Ø66 mm
Working distance: 50–135 mm

VisiLED S80-25 Brightfield – P/N 400.225

Segmented brightfield ring light optimised for microscope configurations with shorter working distances.

Inner diameter: Ø66 mm
Working distance: 25–55 mm

VisiLED S40-75 Brightfield – P/N 400.110

Brightfield illumination for applications requiring increased clearance between the microscope objective and specimen.

Inner diameter: Ø66 mm
Working distance: 55–145 mm

VisiLED S80-65N-2 Brightfield – P/N 400.266

Larger Ø81 mm segmented ring light for compatible high-performance stereo microscope objective systems.

Inner diameter: Ø81 mm
Working distance: 35–100 mm

The MC 1500 provides two independent VisiLED light-head connections, identified as channels A and B.

This allows two illumination heads to remain installed on the microscope while their settings are controlled through the same controller.

Each channel can have its own illumination intensity, segment pattern and illumination-direction settings, making the MC 1500 particularly useful for advanced contrast techniques.

Compatible segmented VisiLED ring lights allow sections of the illumination ring to be selected electronically.

Segment patterns can then be rotated around the specimen, changing the direction of incident illumination without mechanically repositioning the light head.

This is particularly useful for identifying scratches, relief, edges and directional surface structures.

The MC 1500 can store up to four illumination scenarios.

This is particularly useful in quality-control and imaging environments where the same illumination settings need to be reproduced for multiple specimens or operators.

Stored settings can reduce setup time and help improve consistency between inspection sessions.

The VisiLED system can combine ring lights, darkfield illumination, transmitted-light stages, controllers, diffusers, polarisation components and mounting accessories.

The MC 1500's two-channel capability makes it particularly suitable for building more sophisticated multi-illumination systems.

Click the diagram to view full size.

See how SCHOTT VisiLED segmented illumination changes the direction of light around the specimen and helps reveal different surface structures and contrast effects.

Auckland Scientific – Advanced Illumination Support

The MC 1500 can be configured as anything from an advanced single-head system to a two-head brightfield, darkfield or transmitted-light arrangement.

Tell us your microscope model, working distance and application and we can help configure the appropriate VisiLED heads, controller accessories and mounting components.
