Smart Digital Embedded Camera's for Nikon Upright Microscopes

Solution 1 – 20 MP with 15.6″ 2K Display

£1,649.00

Smart Digital Embedded Camera's for Nikon Upright Microscopes

£1,649.00

Nikon Microscope Embedded Camera Upgrade Options Solution 1 – 20 MP with 15.6″ 2K Display Solution 1 – 48 MP with 15.6″ 4K Display Solution 2 – 48 MP Smart Embedded Camera Solution 3 – 20 MP WiFi Multi-Output Camera

AUCKLAND SCIENTIFIC DIGITAL IMAGING

Digital Imaging Upgrades for Nikon Upright Microscopes

Transform a compatible binocular microscope into a powerful digital imaging, teaching and documentation system.

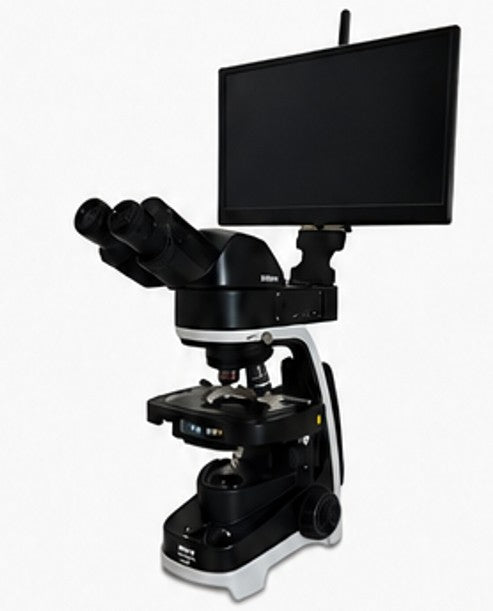

Important: This listing is for a digital imaging upgrade system only. The microscope shown in example images is not included. Auckland Scientific can supply a compatible Nikon microscope separately - please contact us for advice or a complete-system quotation.

Click to view PDF

Smart digital imaging without replacing your microscope

These purpose-designed upgrade systems integrate with selected Nikon binocular upright microscopes, including compatible ECLIPSE Si, Ei and E200 configurations. A 50:50 light-splitting optical design preserves normal binocular viewing while simultaneously directing the image to the camera. The integrated 0.43× tube lens provides a wide field of view, while the easy-focus adjustment helps synchronise the eyepiece and displayed image.

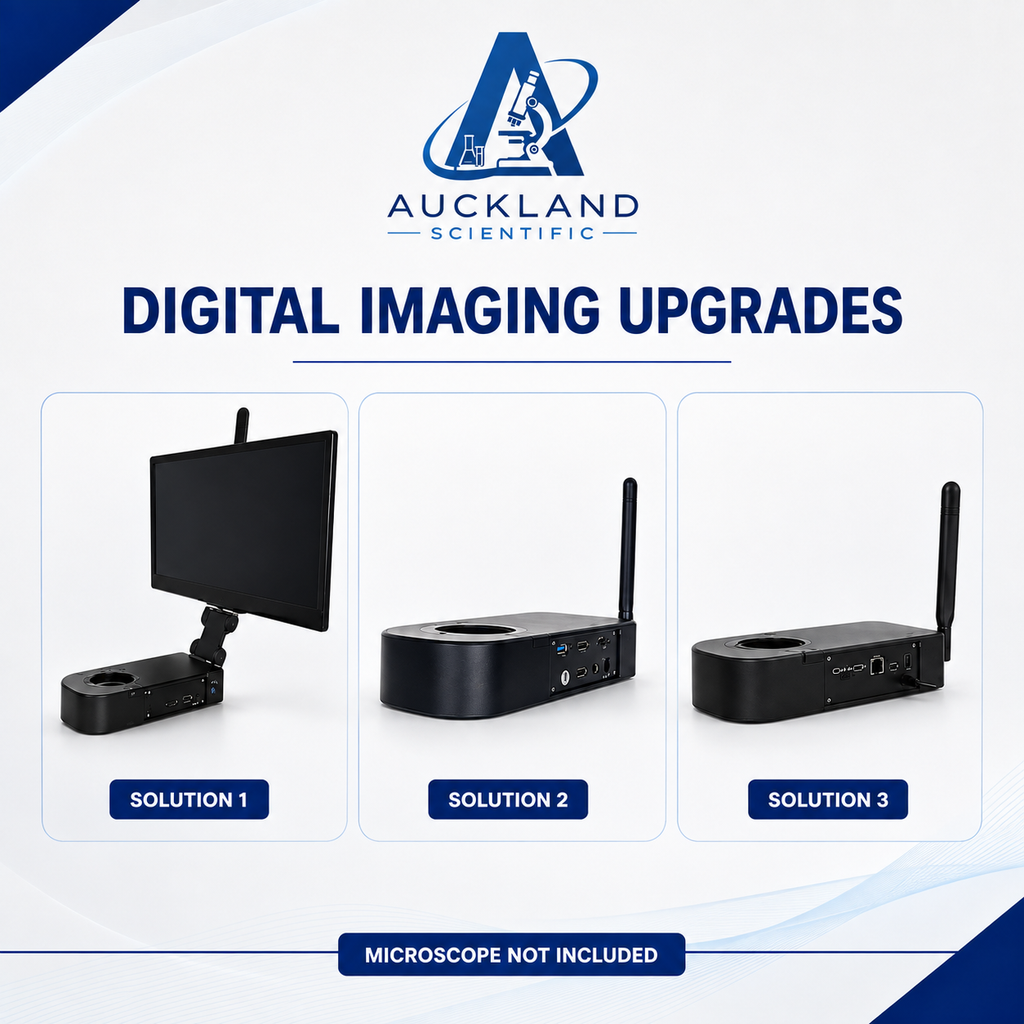

Choose from three carefully configured Auckland Scientific solutions. The available configurations include 20 MP and 48 MP imaging, with display-equipped, PC-free and flexible multi-output options to suit different teaching, documentation and laboratory workflows.

SOLUTION 1

Smart Embedded Display Camera

The complete PC-free teaching and presentation solution.

Choice of 20 MP with a 15.6-inch 2K display or 48 MP with a 15.6-inch 4K display
Built-in Android operating system for PC-free operation
Integrated imaging and productivity applications
DisplayPort and high-speed wireless connectivity
USB connectivity for a mouse, keyboard and external storage
Ideal for teaching, demonstrations and large classrooms

SOLUTION 2

Smart Embedded Camera

A compact PC-free imaging system for an existing display.

High-resolution 48 MP Sony IMX586 CMOS sensor
Built-in Android 12 operating system
Integrated imaging and productivity applications
DisplayPort and 6 GHz/5 GHz wireless connectivity
Connect to a monitor, television or projector
USB connectivity for control and external storage
Ideal for routine imaging, teaching and documentation

SOLUTION 3

WiFi Multi-Output Embedded Camera

Flexible connectivity for shared imaging and collaborative work.

20 MP imaging with a 1/1.8-inch sensor
5 GHz WiFi connection for compatible computers and mobile devices
USB 2.0 UVC output for driver-free use with compatible software
Gigabit network connection for LAN image sharing
Up to 13 compatible devices may access images over the local network
HDMI live-view output to a compatible monitor, television or projector
Easy switching between USB and WiFi operating modes
Ideal for education, routine microscopy and documentation

Available upgrade configurations

Shopify variant	Resolution	Display / operating system	Principal connections
Solution 1 - 20 MP with 15.6-inch 2K Display	20 MP	15.6-inch 2K display Android 7	DisplayPort, 5 GHz WiFi and USB
Solution 1 - 48 MP with 15.6-inch 4K Display	48 MP Sony IMX586 CMOS	15.6-inch 4K display Android 12	DisplayPort, 6 GHz/5 GHz WiFi and USB
Solution 2 - 48 MP Smart Embedded Camera	48 MP Sony IMX586 CMOS	Android 12 External display required	DisplayPort, 6 GHz/5 GHz WiFi and USB
Solution 3 - 20 MP WiFi Multi-Output Camera	20 MP 1/1.8-inch sensor	Use with a compatible computer, mobile device or display	5 GHz WiFi, USB 2.0, HDMI and network

Which solution should I choose?

Choose Solution 1 when you want a complete, self-contained system with its own 15.6-inch display.

Choose Solution 2 when you already have a suitable monitor, television or projector and want PC-free operation.

Choose Solution 3 when flexible WiFi, USB and network connectivity is the priority.

Key optical and imaging features

50:50 NPBS beam-splitter design maintains simultaneous eyepiece viewing and digital imaging
0.43× tube lens delivers a wide field of view
Easy focus adjustment for alignment between the eyepiece and screen image
Automatic and manual exposure adjustment
Automatic and manual red/blue white-balance adjustment
Image capture, live viewing, recording and sharing options vary by selected solution

Compatibility and ordering

Designed for Nikon binocular upright biological microscopes with a compatible dovetail interface, including the Nikon ECLIPSE Si, Nikon ECLIPSE Ei and Nikon ECLIPSE E200. Please select or advise your microscope model when ordering so that Auckland Scientific can check the exact configuration and ensure the appropriate installation components are supplied.

Discounts available for multiples of 10 units.

Need a complete microscope system? Auckland Scientific can supply a suitable microscope separately and configure the camera upgrade as a complete imaging package. Please contact us for a tailored quotation.

18-month warranty

Every system includes an 18-month warranty for added reassurance. Extended warranty options are also available - please contact Auckland Scientific for details and pricing.

Auckland Scientific support

Benefit from UK-based product advice, compatibility checking and dependable after-sales support. Supplied accessories are confirmed with your selected configuration.

This product is an imaging upgrade only. The microscope and any external display devices or other equipment shown in application images are not included unless expressly stated. Auckland Scientific can supply compatible Nikon microscopes separately. Wireless operation requires a compatible router or device. Specifications may change as products are developed.
