Starna Type 9 Semi-Micro Spectrophotometer Cells – UV Quartz & Special Optical Glass
UV Quartz 5 mm, 700 µL
£178.22
Sale price
£178.22
Regular price
Skip to product information
Starna Type 9 Semi-Micro Spectrophotometer Cells – UV Quartz & Special Optical Glass
£178.22
Sale price
£178.22
Regular price

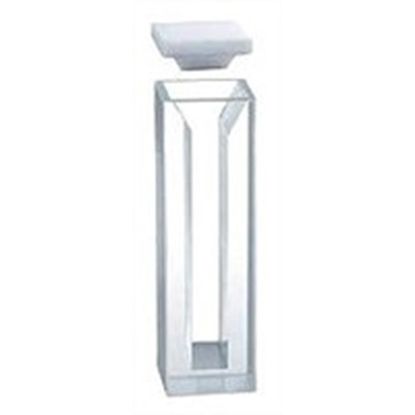

Starna Type 9 Semi-Micro Cells
Rectangular semi-micro spectrophotometer cells with a 4 mm-wide sample chamber and two clear windows. Available in UV quartz for UV/Vis measurements and special optical glass for visible-range work.
Choose the correct material and path length
UV quartz options cover 170–2700 nm, while the special optical glass version covers 320–2500 nm. If you need help matching a cell to your instrument, contact Auckland Scientific for advice.
UV quartz options cover 170–2700 nm, while the special optical glass version covers 320–2500 nm. If you need help matching a cell to your instrument, contact Auckland Scientific for advice.
Key Features
- Semi-micro rectangular cell format
- 4 mm-wide sample chamber
- Two clear optical windows
- Open top with non-sealing PTFE cover
- UV quartz and special optical glass options
- Suitable for spectrophotometers and, for SOG version, colorimeters
Available Configurations
| SKU | Material | Path Length | Volume | Wavelength |
|---|---|---|---|---|
| SN9/Q/5 | UV Quartz | 5 mm | 700 µL | 170–2700 nm |
| SN9/Q/10 | UV Quartz | 10 mm | 1.4 mL | 170–2700 nm |
| SN9/Q/20 | UV Quartz | 20 mm | 2.8 mL | 170–2700 nm |
| SN9/Q/50 | UV Quartz | 50 mm | 7 mL | 170–2700 nm |
| SN9/SOG/10 | Special Optical Glass | 10 mm | 1.4 mL | 320–2500 nm |
Technical Document
View Starna Type 9 cell data sheet (PDF)
Need help choosing the correct cell?
Contact Auckland Scientific for advice.
