AUC-380A & AUC-380B Research Grade Parallel Zoom Stereo Microscopes

Research-Grade Optical Performance for Demanding Applications

The AUC-380A and AUC-380B are premium research-grade zoom stereo microscopes designed for laboratories, universities, life sciences, electronics inspection, semiconductor manufacturing, quality control and advanced industrial applications. Featuring an infinite parallel Galileo optical system combined with plan apochromatic optics, these microscopes deliver exceptional image quality, outstanding colour fidelity and superb edge-to-edge sharpness throughout the zoom range.

Designed with operator comfort in mind, both models offer precision focusing, ergonomic controls and outstanding optical performance for prolonged periods of observation and inspection.

Both models are supplied complete with a 0.5x C-Mount camera adapter as standard, allowing easy connection to digital microscope cameras for image capture, documentation and live display.

Key Features

• Infinite Parallel Galileo Optical System
• Premium Plan Apochromatic 1× objective
• Large 12.5:1 zoom ratio
• Magnification range from 6.3× to 80× (standard configuration)
• Crisp, high-contrast images with excellent colour correction
• Built-in aperture diaphragm for enhanced depth of field
• Precision coaxial coarse and fine focusing
• Long 80 mm working distance
• High eye-point Plan 10×/22 mm widefield eyepieces
• Trinocular viewing head for camera integration
• 0.5x C-Mount camera adapter included as standard
• Modular design with optional objectives, eyepieces and accessories

Exceptional Optical Performance

The advanced apochromatic optical system provides outstanding correction of chromatic aberration, delivering:

• Superior colour accuracy
• Excellent contrast
• High resolution
• Flat field imaging
• Reduced colour fringing
• Outstanding edge-to-edge clarity

Ideal for both observation and digital imaging applications.

Large 12.5:1 Zoom Range

The precision zoom system offers continuous magnification from 0.63× to 8× with positive click-stops at popular magnifications for repeatable inspection work.

Combined with the standard optics this provides:

• 6.3× – 80× total magnification

Optional objectives and eyepieces allow magnifications up to 320×.

Built-In Aperture Diaphragm

An integrated aperture diaphragm allows users to optimise:

• Depth of field
• Image contrast
• Resolution
• Brightness

This is particularly beneficial when inspecting three-dimensional specimens.

Precision Focusing

Both models feature a robust integrated focusing system with:

• Coaxial coarse and fine focus controls
• 50 mm focusing range
• Fine focus accuracy of 0.002 mm

Ideal for demanding laboratory and industrial inspection tasks.

Choose the Model That Best Suits Your Application

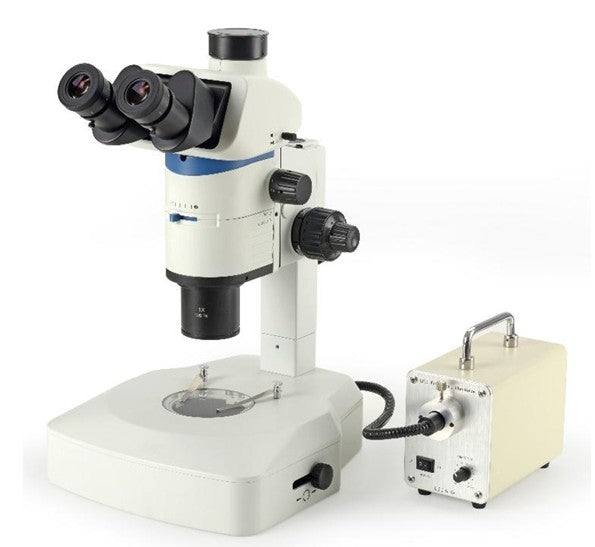

AUC-380A

Designed for advanced laboratory work requiring maximum flexibility.

Features include:

• Ergonomic 5°–45° tilting trinocular viewing head 100:0 or 0:100
• 360° rotatable mirror transmitted illumination system
• External 5 W LED fibre optic illumination
• Comfortable viewing position for multiple users
• Excellent for biological research, dissection and specimen manipulation

AUC-380B

Designed for modern laboratory and industrial inspection environments.

Features include:

• Fixed 30° trinocular viewing head 50:50
• Ultra-slim illuminated base
• Integrated LED transmitted illumination
• Adjustable LED brightness

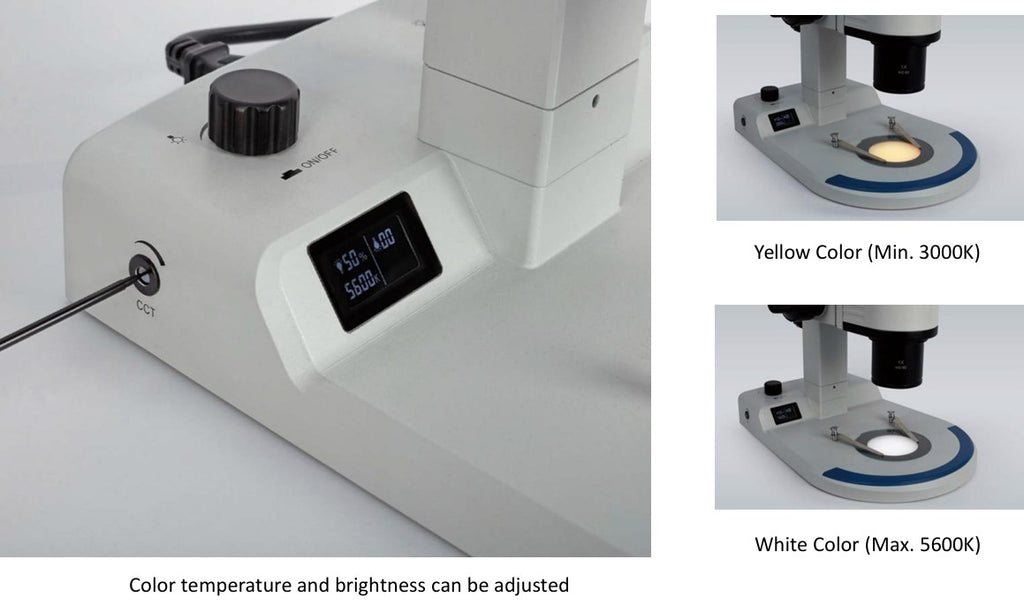

• Adjustable colour temperature from 3000K to 5600K
• Built-in LCD display showing brightness and colour temperature
• Modern compact design

The adjustable colour temperature enables users to optimise illumination for different sample types and imaging requirements.

Comfortable Ergonomic Design

Designed for long working sessions, the AUC-380 series includes:

• High eye-point widefield eyepieces
• Adjustable interpupillary distance (50–76 mm)
• Diopter adjustment
• Smooth precision zoom controls
• Ergonomic focusing system

The AUC-380A additionally features an adjustable viewing angle from 5° to 45°, allowing users to work comfortably regardless of seating position.

Typical Applications

The AUC-380 Series is suitable for:

Life Science

• Biological research
• Cell culture
• Tissue examination
• IVF laboratories
• Dissection
• Medical research

Industrial Inspection

• PCB inspection
• SMT inspection
• Electronics manufacturing
• Semiconductor inspection
• Precision engineering
• Materials science
• Metal inspection

Laboratory

• Universities
• Research institutes
• Quality control laboratories
• Pharmaceutical laboratories
• Clinical laboratories

Specialist Applications

• Gemology
• Watchmaking
• Jewellery manufacture
• Coin inspection
• Engraving
• Conservation
• Forensics
• Small component repair

Standard Specification

Optical System

• Infinite Parallel Galileo optical system
• Plan Apochromatic 1× objective
• 12.5:1 zoom ratio
• Zoom range: 0.63×–8×

Eyepieces

• Plan Widefield 10×/22 mm
• High eye-point design
• Diopter adjustment

Viewing Head

AUC-380A

• 5°–45° tilting trinocular head 100:0 percent to eyepieces or 0:100 to the camera port.

AUC-380B

• Fixed 30° trinocular head 50:50 percent to eyepieces and camera

Focus

• Coarse and fine coaxial focusing
• 50 mm travel
• Fine focus precision: 0.002 mm

Working Distance

• 80 mm (standard objective)

Camera Port

• Trinocular camera port
• 0.5x C-Mount adapter included as standard

Optional Accessories

• 0.5× Plan Apochromatic objective
• 1.5× Plan Apochromatic objective
• 2× Plan Apochromatic objective
• 15× eyepieces
• 20× eyepieces
• LED ring illumination
• Additional C-Mount adapters
• Digital microscope cameras

Why Choose Auckland Scientific?

When you purchase from Auckland Scientific, you receive more than just a microscope.

We provide:

• Expert product advice
• UK technical support
• 3-Year Auckland Scientific Warranty
• Installation assistance
• Operator training
• Preventative maintenance
• Service and repairs
• Calibration support (where applicable)
• Ongoing after-sales support

Whether you're equipping a research laboratory, inspection facility or manufacturing environment, the AUC-380A and AUC-380B deliver outstanding optical performance, ergonomic design and exceptional reliability for professional microscopy applications.
