AUC- POL-92 Series Trinocular Polarizing Microscope with illumination Options complete with 0.45x C-Mount Adapter (Laboratory & Research Grade)

Transmitted illumination

£3,495.00

AUC- POL-92 Series Trinocular Polarizing Microscope with illumination Options complete with 0.45x C-Mount Adapter (Laboratory & Research Grade)

£3,495.00

Trinocular Polarizing Microscope with illumination Options complete with 0.45x C-Mount Adapter

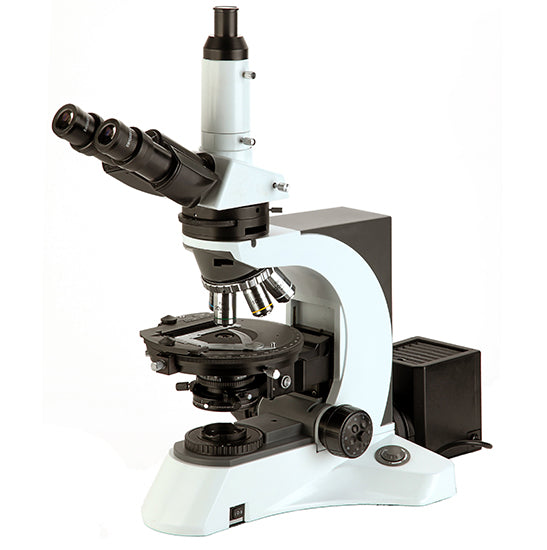

Microscope AUC-POL-92

Trinocular with Transmitted illumination

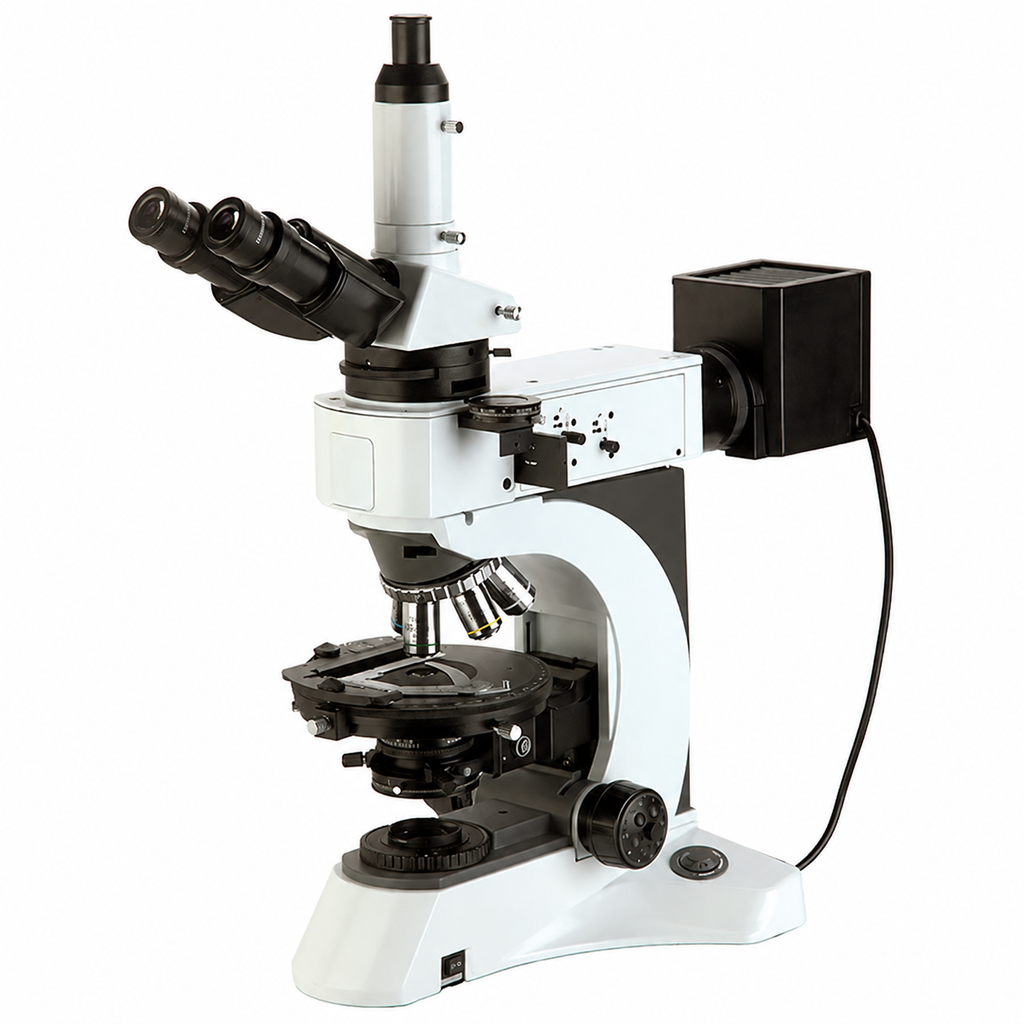

Microscope AUC-POL-92RF

Trinocular with Reflected illumination

Microscope AUC-POL-92TRF

Trinocular with Transmitted & Reflected Illumination

Introduction

The POL 92 series of polarizing microscopes is specifically designed for university colleges, geology, mining, metallurgy, pharmacy and other institutions for teaching, research and production. It can be used to analyze and identify various minerals and specimens, it can also be used to inspect chemical fiber, semiconductor products and medicines. Users can do single-polarized observation, orthogonal polarization observation, conoscope observation and photography with the microscope. This microscope is a set of powerful and good quality polarizing microscope.

Details

Magnification: 40×-1000×

Eyepiece: EW10×

Objective: 4×,10×,40×,100×

Condenser: NA0.9/0.25

Illumination: Transmitted Light

Viewing Head: Trinocular

Focus: Coaxial Coarse

Features

Supply high quality and contrast image with special strain free objectives.
Can be used for single polarization, othorgonal polarization and conoscopic observation.
Transmitted illumination, 24V/100W long life halogen lamp.
Stage with 45˚ located, attachable mechanical stage with large moving range, no interference when change objectives.
Gypsum λ plate, mica λ/ 4 plate, quartz wedge plate are equipped.

Application

The POL 92 range of polarizing microscope can be used for geology, petroleum, chemicals, mining, metallurgy, pharmacy, polymer, LED and other field. It can be used in university colleges, industrial laboratories and other institutions for teaching, research and production.

AUC-POL-92 Specification
